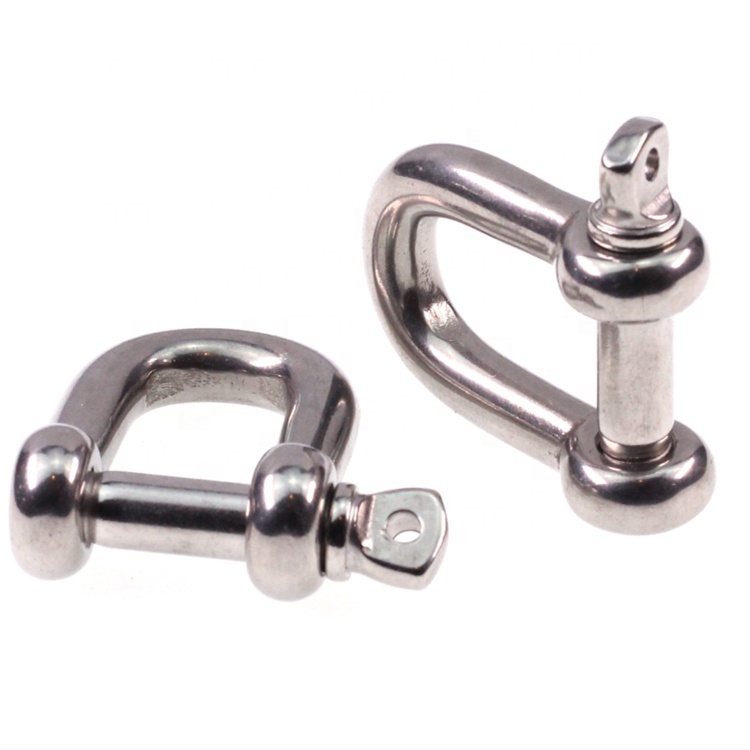

JIS AISI 304 316 Stainless Steel D Shackle Screw Pin

Product Description

Specification

SIZE	A  (mm)	B  (mm)	C  (mm)	D  (mm)	WEIGHT  KG
M4	16	8.2	8.6	3.9	0.008
M5	17.6	10	9.6	4.8	0.014
M6	24.5	13	11.9	5.78	0.024
M8	27	17	16.8	7.8	0.056
M10	35.5	21	19.8	9.7	0.109
M12	41	24	22.8	11.7	0.186
M14	48.1	28.9	28.1	13.6	0.300
M16	55	33	30.2	15.5	0.443
M18	61.5	35.5	37.3	17.7	0.721
M20	68	40	39.3	19.5	0.886
M22	74.8	44.8	44.1	21.9	1.187
M25	84.8	55.2	48.3	23.7	1.525
M28	100.9	59.3	53.6	27.6	2.384
M32	115	66.3	63.5	32	3.629
M38	131	78	74.8	37.5	6.008

Details Images
