GTWYQY Double Masts Aluminum Alloy Lift
video

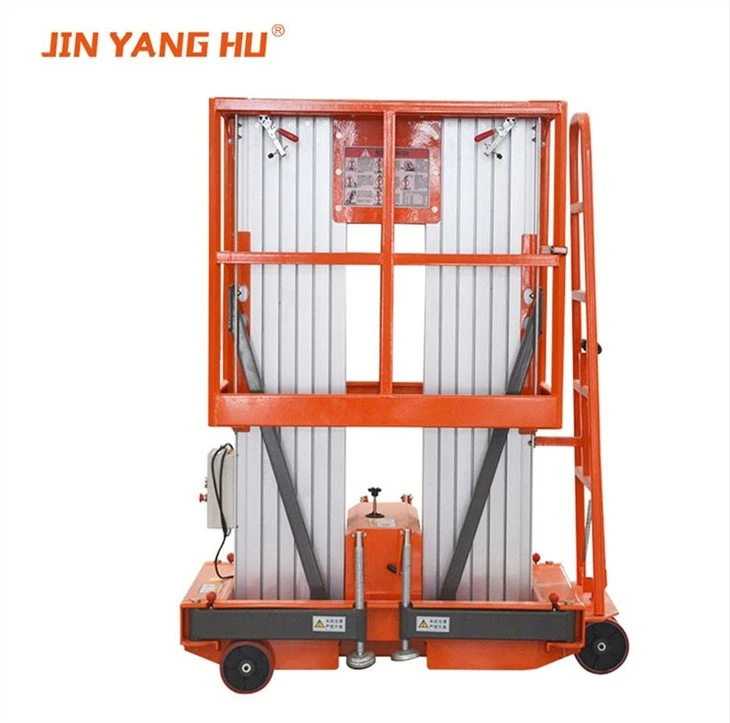

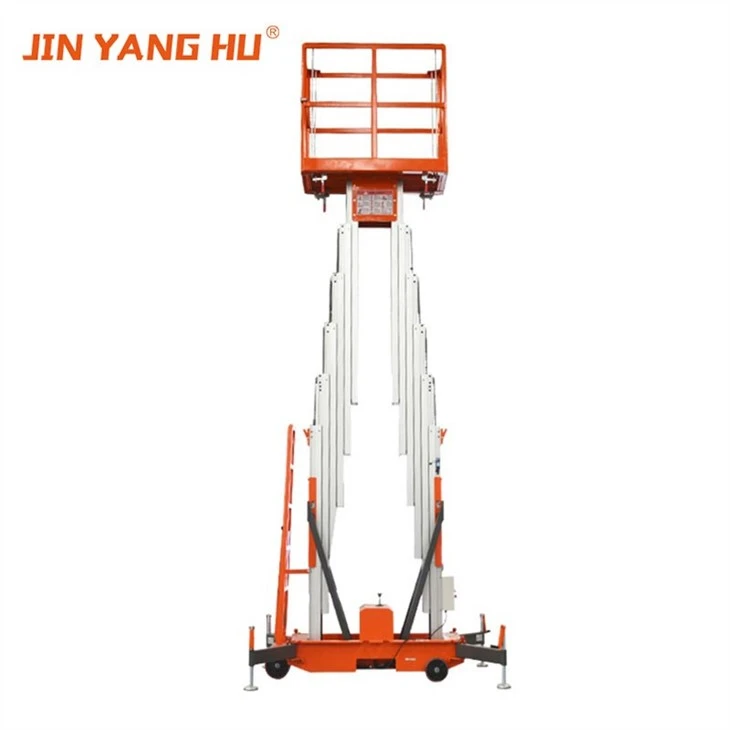

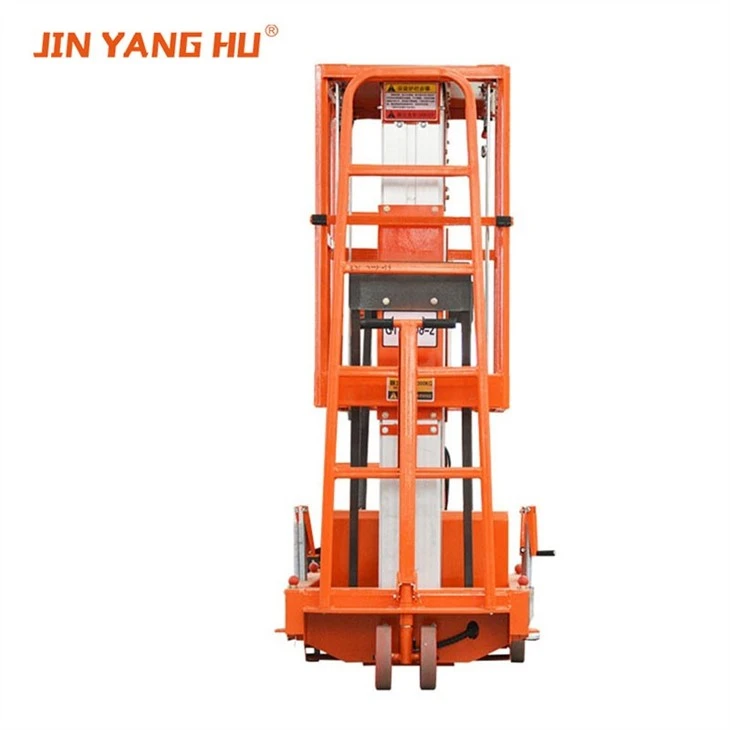

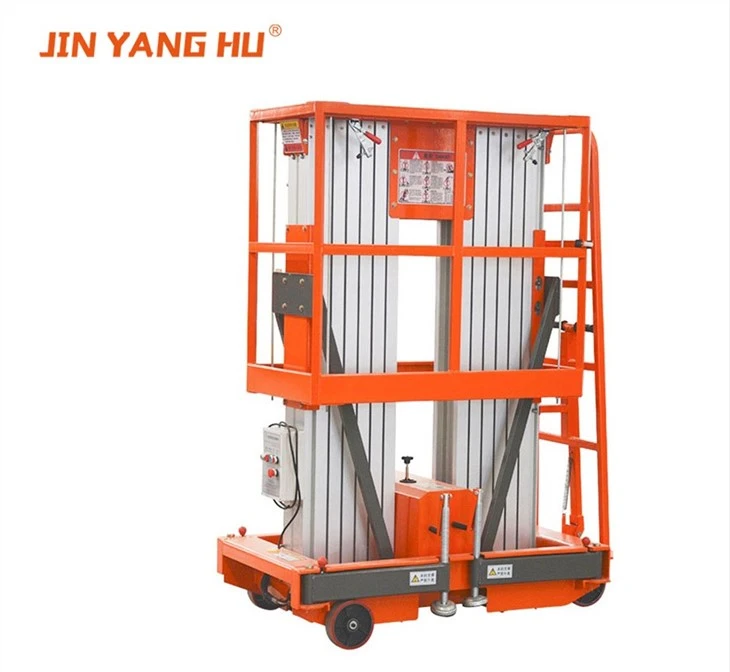

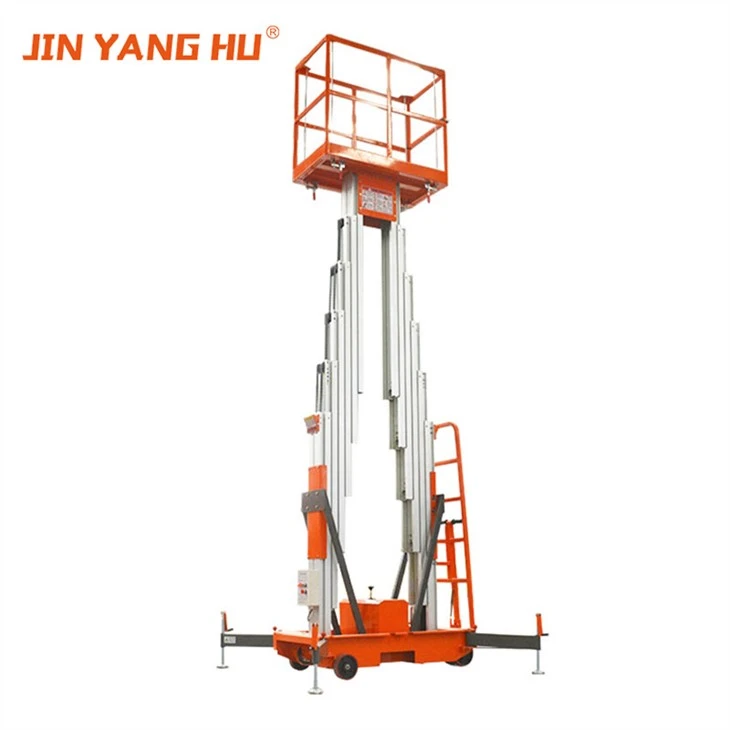

GTWYQY Double Masts Aluminum Alloy Lift

Double Masts Aluminum Alloy Lift is a type of lifting equipment used primarily for material handling and maintenance purposes. It is made of high-quality aluminum alloy, which ensures its durability and strength. This lift has two masts that provide stability and support while lifting heavy loads to a desired height. Double Masts Aluminum Alloy Lift has a hydraulic lift system that enables smooth and easy lifting of objects. It comes with safety features such as safety lock features and controls that prevent overloading or tipping. With its compact design and easy maneuverability, Double Masts Aluminum Alloy Lift is suitable for indoor and outdoor use. It is commonly used in factories, warehouses, construction sites, and maintenance facilities. This lift is a reliable solution for workers needing to reach high places and transport heavy loads.
Send Inquiry
Product Introduction
Description of aerial work platform



The Double Masts Aluminum Alloy Lift platform is a sturdy, reliable and versatile equipment ideal for accessing high areas in different industrial and commercial settings. It features two aluminum masts that are reinforced for added stability and load-bearing capacity.

The lift platform is designed to support heavy loads while maintaining a smooth and stable operation. The platform of the lift is spacious enough to accommodate workers and equipment, making it an ideal choice for maintenance, installation, and repair tasks. The lift is also easy to maneuver thanks to its compact design, and it can smoothly move around tight corners, making it suitable for both indoor and outdoor use.




Details of the platform



MULTIPLE CONTROL METHODS
1. The standard down control and remote control modes are convenient for aeral working operators to operate the equipment, saving time and efficiency.
2. The ground staff can operate the equipment through the down control box, while the aerial staff can also control the equipment up and down through the remote controller, which saves time and efficiency.
3. The control box is equipped with an emergency stop button. Press the equipment to cut off the power and stop the operation to protect the equipment and personal safety.
7





EMERGENCY DESCENT SYSTEM
In case of sudden emergencies such as power failure, turning on the emergency button will make the platform fall slowly and the construction personnel will descend to a safe height to ensure safety.
8







THICKENED CHASSIS
The thickened chassis of Q235 steel plate prevents bumps and can be used with forklifts for convenient and fast transportation.
10








FOLDING SCREW LEG
Folding screw support legs are conducive to saving storage space and convenient for transportation. The legs are equipped with safety fixing pins to prevent the legs from shaking and collision.
9
9




Support Leg
The support legs must be pulled out and unfolded to tighten the work.


12


Limit Switch
Equip with limit switch as a key part of interlocking syatem, to ensure stable operation.

13




Tires
Equipment adopts non-marking tires, reliable quality, long using time.


10




Chain
Plate type chain, long using time, more reliable.


11





Platform Fixed Clip
Used for fixing platform tabie, very stable, ensure safety.






Parameters of aerial work platform



Model
Height
Capacity
Platform Size
supply voltage
Weight
Overall Size
GTWY6-200-2
6m
300kg
1.2×0.63m
24V
710kg
1.85×0.85×1.88m
GTWY8-200-2
8m
300kg
1.2×0.63m
24V
780kg
1.85×0.85×1.88m
GTWY10-200-2
10m
250kg
1.5×0.63m
24V
860kg
2.15×0.85×1.98m
GTWY12-200-2
12m
200kg
1.5×0.63m
24V
970kg
2.15×0.85×1.98m
GTWY14-200-2
14m
150kg
1.5×0.63m
24V
1020kg
2.25×1.05×2.34m



Product Display



17



15

8

Packing&Deliver

product-708-804

19




FAQ



Q: What is the minimum order quantity? (MOQ)

A: Normally 50pcs/item. Trial orders and further requests can be negotiated.

Q: Can I order one sample?
A: Sure. Sample is provided by reasonable charges,the sample charge will be refund after the order is placed.

Q:What is the delivery time?
A: Maximum 50 days after receiving the relevant payment, samples is 5-10 working days around.
Q: What are the different types of Double Masts Aluminum Alloy Lift platforms available?

A: There are many types of Double Masts Aluminum Alloy Lift platforms available, including self-propelled, towable, and stationary models.

Q: What are the benefits of using a Double Masts Aluminum Alloy Lift platform?

A: Some benefits of using a Double Masts Aluminum Alloy Lift platform include their lightweight and durable construction, ease of use, increased stability due to the double masts, and their ability to reach heights that ladders and scaffolding cannot.

Q: What are some common uses for a Double Masts Aluminum Alloy Lift platform?

A: These lift platforms are commonly used in construction, maintenance, and warehouse settings, as well as for indoor and outdoor events, such as concerts and exhibitions.

Q: What safety features are included in a Double Masts Aluminum Alloy Lift platform?

A: Safety features may include guardrails, emergency stop buttons, non-slip platforms, and automatic locks to prevent accidental movement.
