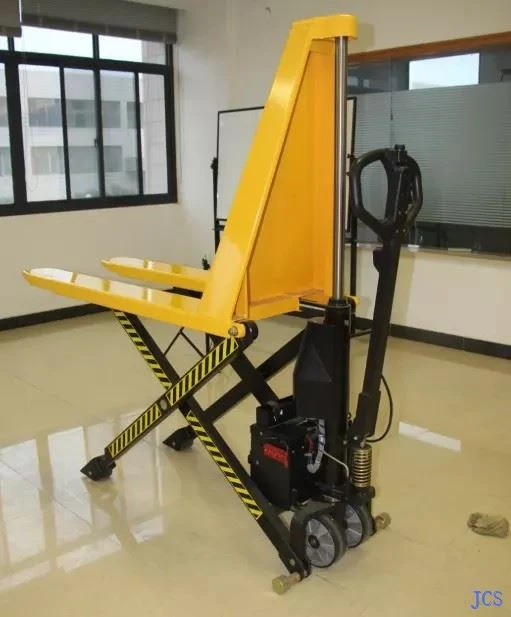

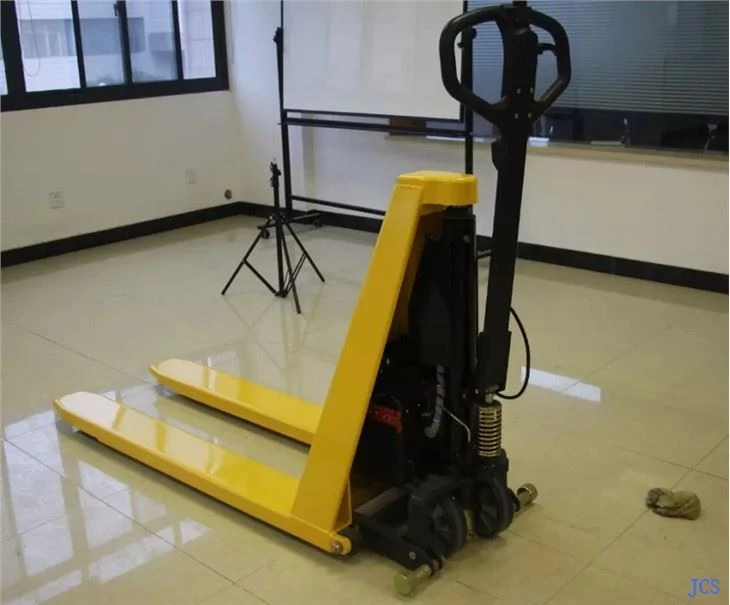

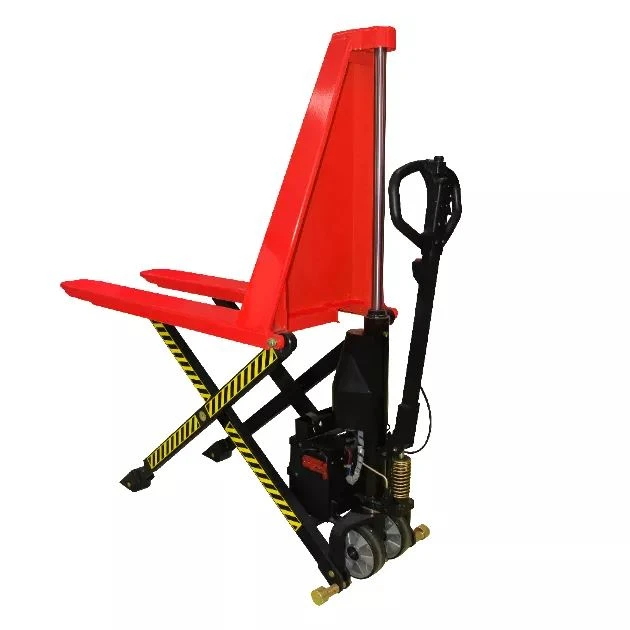

Semi-Electric Scissor Hand Jack Pallet Truck
Semi-Electric Scissor Hand Jack Pallet Truck has One-way cylinder, no reduction of rated load, no risk of leakage, no risk of double-stroke cylinder slipping, ergonomic handle design, making the operator more comfortable and labor-saving, higher safety, when lifting goods higher than 400mm, adjustable The stabilizer can be activated automatically to ensure the best stability and optimal braking. R01010038/R01010039 manual.
When Semi-Electric Scissor Hand Jack Pallet Truck the load is less than 250 kg, the fast lifting function will double the lifting speed. Reliable: Adopt HPI pump station imported from France, which meets European standards EN1757-4 standard
Large capacity batteries, providing longer working hours. |  Rubberized handle, in line with ergonomics |
Reinforced top cap for less damage |
Forks are made of high strength steel, which can carry goods of various materials and heavier goods. |
| Model | ODS-1000-8 | ODS-1500-8 |
| Caoacity(KG) | 1000 | 1500 |
| Max height of Fork (mm) | 800 | 800 |
| Min height of Fork (mm) | 85 | 85 |
| Fork length(mm) | 1140 | 1100 |
| Outer fork width(mm) | 520/680 | |
| Single fork width(mm) | 160 | |
| Front wheel size and material | Φ75*75 | |
| Rear wheel size and material | Φ180*50 | |
| N.W(KG) | 105/112 | 118/125 |
The service life of the truck is generally 3-5 years. Proper use of the truck and timely maintenance of the truck can prolong its service life. Generally speaking, in the process of using the truck, please pay attention to the following points:
1. Do not overload;
2. Whether the ground conditions allow it to be used;
3. Load the goods correctly;
4. Please wear safety shoes and gloves when operating;
5. Please do a thorough operation inspection before each use;
6. Use the correct lifting technology to assemble the machine;
7. Do not ignore the potential dangers that may exist during the operation.
1.What the Certification do you have?
2.Can you customize and design as the clients' requirement?
3.What's the payment terms do you accept?
4.How long is the warranty of your products?
5.Delivery time:
