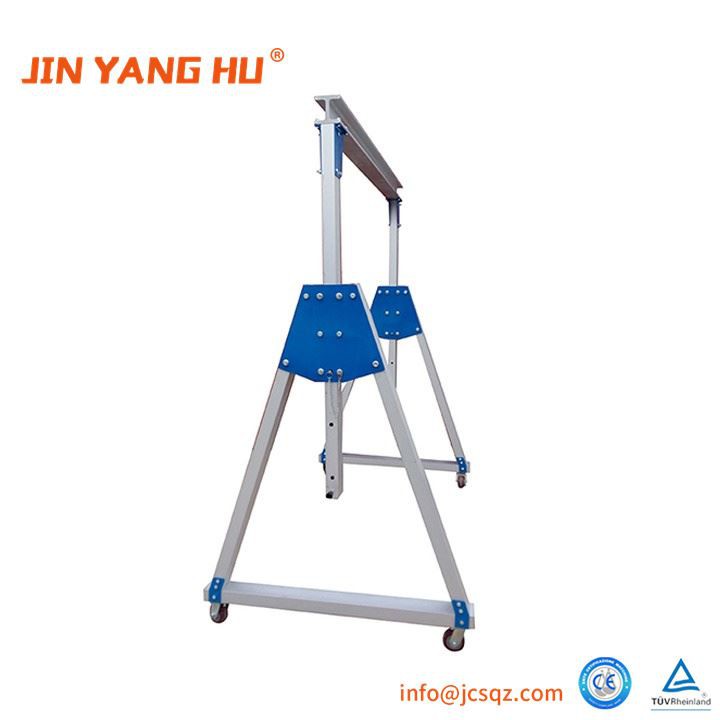

Aluminum portable Gantry Crane Height and Width Adjustable

Aluminum alloy gantry equipment is light in weight, simple in structure, easy to disassemble and assemble, and is mostly used in various clean rooms and laboratories.

Send Inquiry

Product Introduction

Unique portable aluminum gantry system that can safety lift up to 500kg-5000kg,with ,manual assembly on just 4 bolts

Features and benefits include:

Lightweight & portable with easy on site manual assembly

-4 portable parts assembled on just 4 bolts

-Simple 'scissoring' assembly in just 2-3 minutes

-36Oswivel-locking castors as standard for easy positioning

-All Terrain castors & uneven ground options available

-Simple, manual height & span adjustment.Ultra-safe, captive trolley

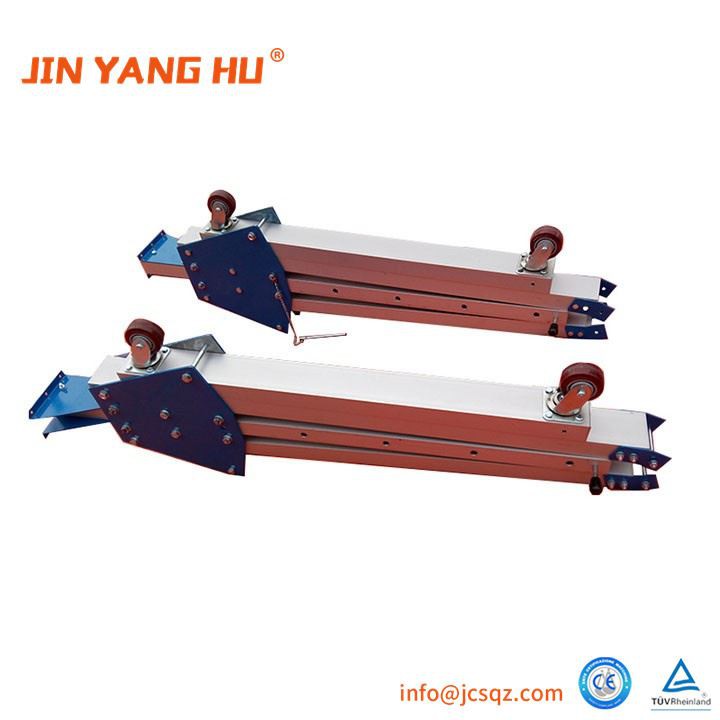

-Flat packed for shipping & storage

-Bolted structure, lateral beam and leg bracing

Features allow complete stability for any lifting challenge
Corrosion resistant, anodized finish - easily cleaned and suitable for clean room applications

Total safety - Notified Body Approval type tested at UKAS accredited laboratories and audited quality systems. CE & EN795Class B approved by notified body

Ergonomic design of profiles, handles, etc., for safer operation.Flexible system configurations WLL 500 up to 50OOkg safely within manual handling guidelines
Variety of sizes - S,M,l,T standard configurations plus customization where required, with interchangeable components (subject to WLL rating)
Bespoke solutions for specific requirements

Easy transport and manual assembly without compromising on strength or safety (WLL up to 5000kg).Custom configurations are available across the range

NOTE - Span and height both adjustable

The height of each gantry beam is easily adjusted by the release of 2 bolts on each upright and can be easily and safely raised into position by increments of 200 or 150mm

To assist with this activity a Geared Wheel or Ratchet system is provided for the larger gantries; manual on smaller frames
