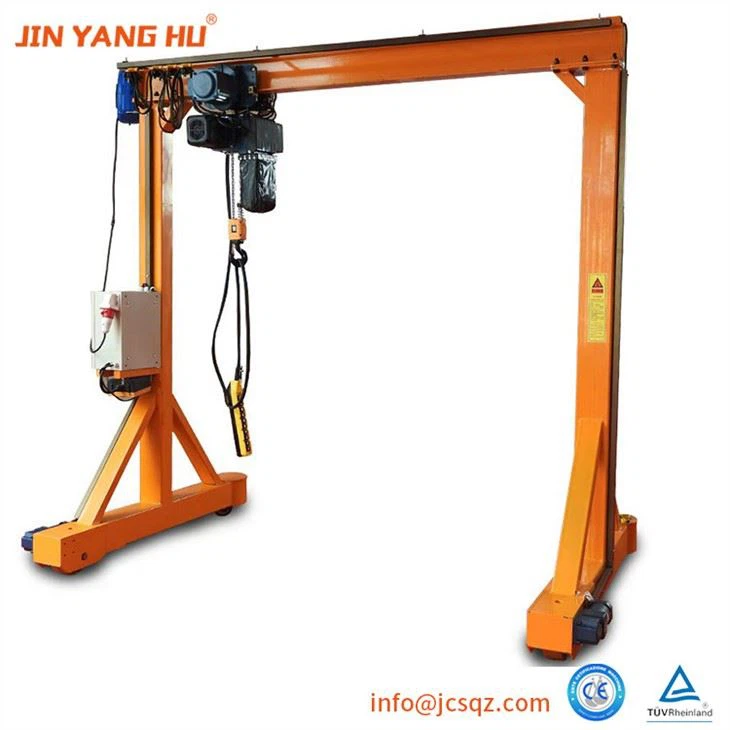

Trackless Electric Walking assembled Gantry Crane
Non-standard customized trackless electric walking gantry crane, load-bearing walking, can also be installed on various models of gantry cranes
Features:
1. The trackless electric walking gantry crane adopts national standard profiles, and the steel plate adopts laser cutting, with smooth cuts and precise hole positions
2. The trackless electric walking gantry crane below 10t is equipped with detachable electric walking components, and above 10t is a built-in electric walking device, which makes the operation more stable
3. The recently upgraded function of the electric walking device-it can rotate 360° in place to adapt to more venues
4. The electric walking components can be installed on various gantry cranes, with more powerful functions and increasing customer experience
5. Electric walking has no track and diversified use sites
| Tonnage | Bottom beam | Motor power kw | Electric caster diameter | Passive caster diameter |
| lt/2t/3t | 150*4 | 0. 37 | 250*5 | 125mm |
| 5t | 200*4 | 0. 75 | 250*7 | 150mm |
| 10t | 250*6 | 1.5 | 300*8 | 150mm |
| Remarks: 1. The motor is a three-phase asynchronous AC motor; 2. It is equipped with an RV reducer; 3. 360° rotates on the spot/turnable; 4. It is equipped with a wireless remote control (effective range of 100 meters); 5, 10t and above electric Walk as an integrated device | ||||
