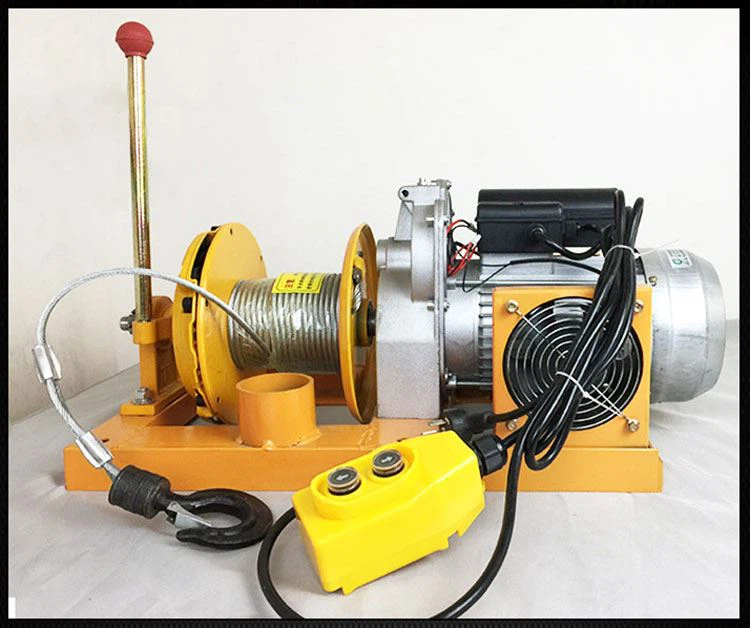

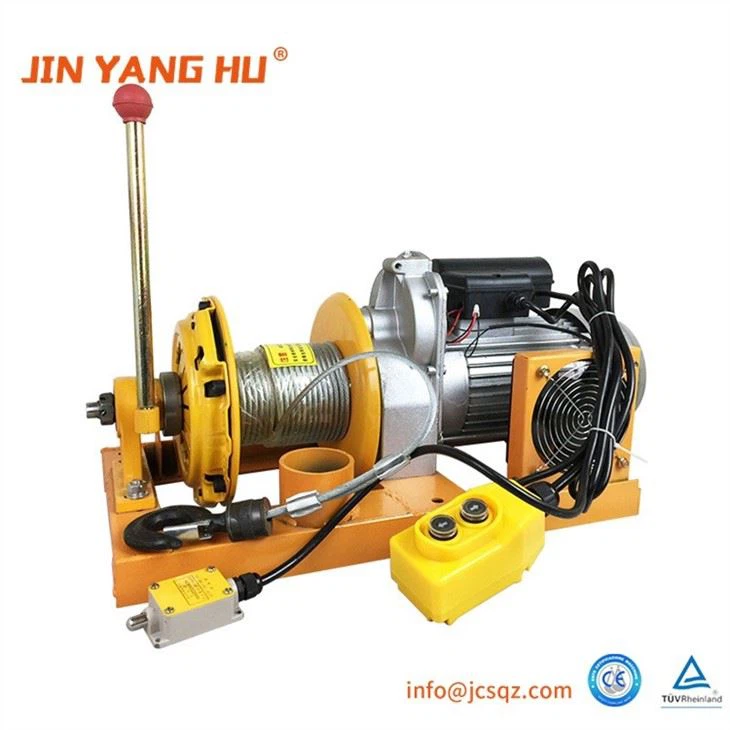

Electric hoist Wire Rope winch With brake & Clutch
Product Description
The clutch and brake of the multifunctional hoist with pressure plate clutch are integrated. You only need to operate the shift lever to control the brake interception and clutch. The reel can be separated from the motor and can be moved down quickly. The speed can be controlled freely and the brake is more sensitive and safer. In the case of power failure, the cargo can be lowered and the safety factor is high.
Product Details
1.High-power dual fan
Enlarging the heat dissipation port, the heat dissipation effect is good, the energy consumption is low, the noise is low, and the work efficiency is greatly improved
2.Anti-rotation wire rope
Using high-quality steel wire rope, good flexibility, high toughness, high safety factor, not easy to loosen
Product Parameters
| Model | 300type | 400type | 500type |
| lifting weight(kg ) | 150 | 200 | 400 |
| lifting speed(m) | 8-15 | 8-15 | 8-15 |
| length of the wire rope(m) | 30-60 | 30-60 | 30-60 |
| rated voltage(v) | 22v/50Hz | 220v/50Hz | 220v/50Hz |
| rated power (w ) | 1500 | 1800 | 2200 |
| Length of rotary support(mm ) | 1200 | 1200 | 1200 |
| Packing size of support(cm ) | 115*21*18 | 115*21*18 | 115*21*18 |
| Indoor mounting height(m) | 2.8-3.2 | 2.8-3.2 | 2.8-3.2 |
| GW(kg ) | 65 | 75 | 95 |
| Packing size(cm ) | 48*28*29 | 48*28*29 | 48*28*29 |
| Dia steel tube(mm ) | 54 | 54 | 60 |
| Steel tube wall thickness(mm ) | 4 | 4 | 5 |
| Dia of the wire rope(mm) | 5 | 5 | 6 |
