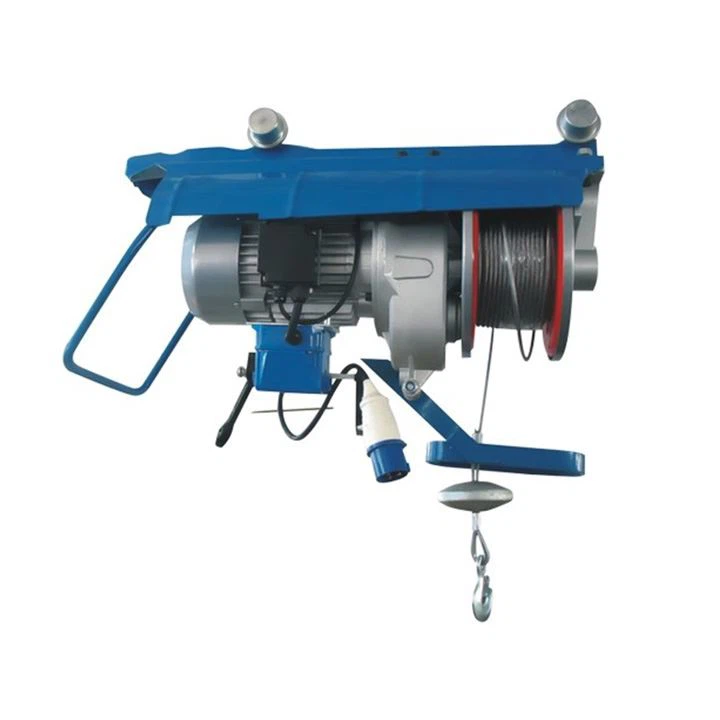

Fast Speed Push Electric cable Hoist winch
Push electric hoist

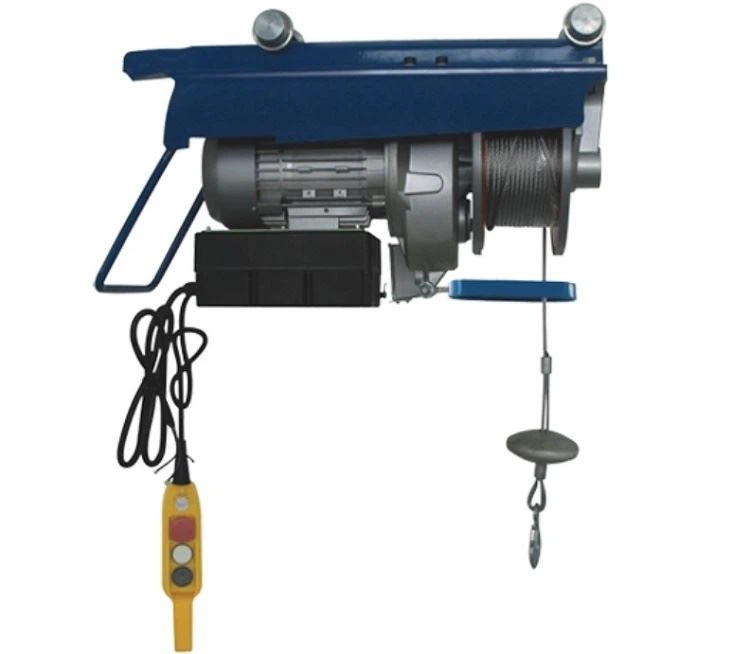

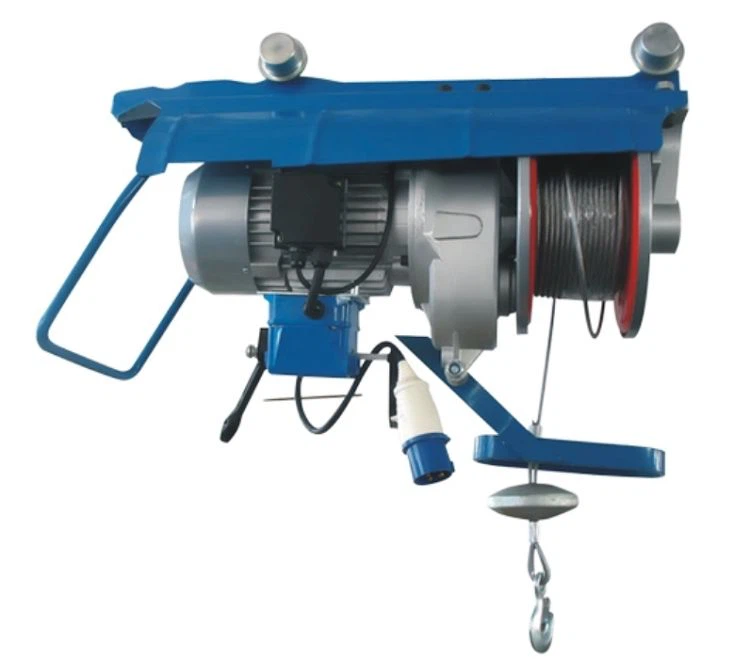

Push electric hoist is a new model wire rope hoist. The full name is PA mini electric push wire rope hoist. Comparing with the normal fixed electric wire rope hoist, it move by hand push which is more flexible and convenience.
Features
1: Move by hand push, flexible, save power, energy conservation and environment protection
2: Small volume, but big power
3: Lifting speed is very fast which can get to 25m/min
4: Very high protection lever with emergency stop and high performance of the insulation
With the advantages above, this kind of push electric hoist was widely used in the Painting workshop, production line, mechanical parts assembly, mines and many other working site.
Parameter Specification
Model | Unit | HSG-B300F | HSG-B400F | HSG-B500F | HSG-B300F1 | HSG-B400F1 | HSG-B500F1 |
Capacity | Kg | 300 | 400 | 500 | 300 | 400 | 500 |
LIfting height | m | 24 | |||||
Lifting speed | m/min | 21 | 21 | 16 | 28 | 21 | 21 |
Diameter | mm | ф 6 | ф 6 | ф 7 | ф 6 | ф 6 | ф 7 |
Voltage | V | AC 100/110/120220/230/240 | AC 220/380/420/440 | ||||
Hz | 50/60 | ||||||
Packing size | mm | 800 ×340 ×540 | |||||
G.W/N.W | Kg | 58/56 | 58/56 | 62/60 | 58/56 | 58/56 | 62/60 |
Packing and delivery
One set hoist fill into one wooden carton, then pack 6-8sets with one pallet and loading into the container.
