Electric wire rope Winch Hoist
Product Description

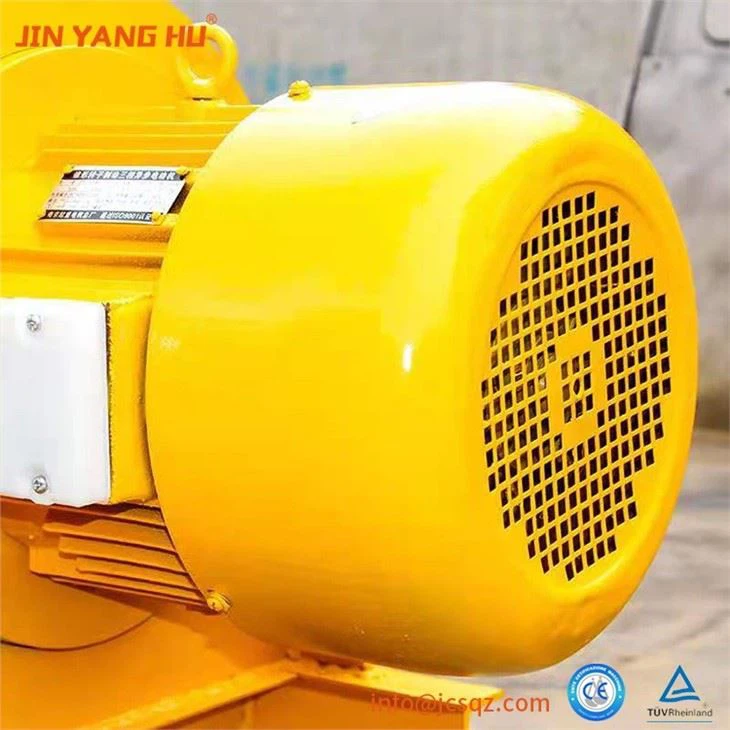

Electric Winch Hoist consists of motor, coupling, brake, gearbox, and drum, mounted together on the rack, it is a device that mechanically drives a reel and winding rope to complete the traction work. It can vertically lift or horizontal and inclined drag heavy object. Electric winch widely used in construction, water conservancy, forestry, mines, docks, and other materials lifting or towing.
Electric winch can customize the volume, quantity, direction of the rope, the single row rope, lifting speed, fixed direction, same rise and drop, and working voltage, etc., It can also be equipped with wire rope, electric control box, handle switch, hook, wireless remote control, etc.
Braking principle:
Electric Winch Hoist adopts a cone-type electromagnetic braking device, the motor working brake is separated, the motor stop braking is closed immediately, which plays the role of quick braking. The electric winch can be used alone or as a component of machinery such as lifting, road building, and my lifting, a large amount of rope winding, easy to move, and simplicity of operator.
Important parts
Winding drum
The electric winch adopts a winding drum, which is easy to operate and has a large amount of rope winding.
European hook
High-quality steel, not easy to break, safe and reliable Wireline
Thickened base
Welded structure to avoid the safety hidden danger caused by screw loosening and enhance the stability of the product.
Wireline
Uniform oil immersion of each wire rope, prolonging the service life of the wire rope and lasting for a long time
Model | DT-1T | DT-2T | DT-3T | DT-5T | DT-10T |
Rated load weight(t) | 1 | 2 | 3 | 5 | 10 |
Lifting altitude(m) | 1-100 | ||||
Lifting speed(m/min) | 16/8 | 16/8 | 16/8 | 16/8 | 14/7 |
Rope diameter (mm) | 7.7 | 11 | 13 | 15.5 | 19.5 |
Rated voltage | 380vV 50HZ | ||||
Power(kw) | 1.5 | 3 | 4.5 | 7.5 | 13 |
Bare metal weight(kg) | 85 | 140 | 178 | 258 | 650 |
