Product Introduction

Product Description

Compression Transmission Panel Hydraulic Hole Punch Hole Digger Tool Hydrolic Punch SKP-15

Feature:

Hydraulic Hole Maker SKP-15Feature:
• It contain hydraulic punch driver.
• With the help of hydraulic system, making holes by hand become fast and easy
• Die could be OEM.
• With round dies MAP10-4, punching capacity can be reached 4” (MAP10-4 Dies sizes:        2 1/2”(Φ76.1mm), 3”(Φ88.9mm) , 3 1/2”(Φ102.8mm)  4”(Φ115.5mm)

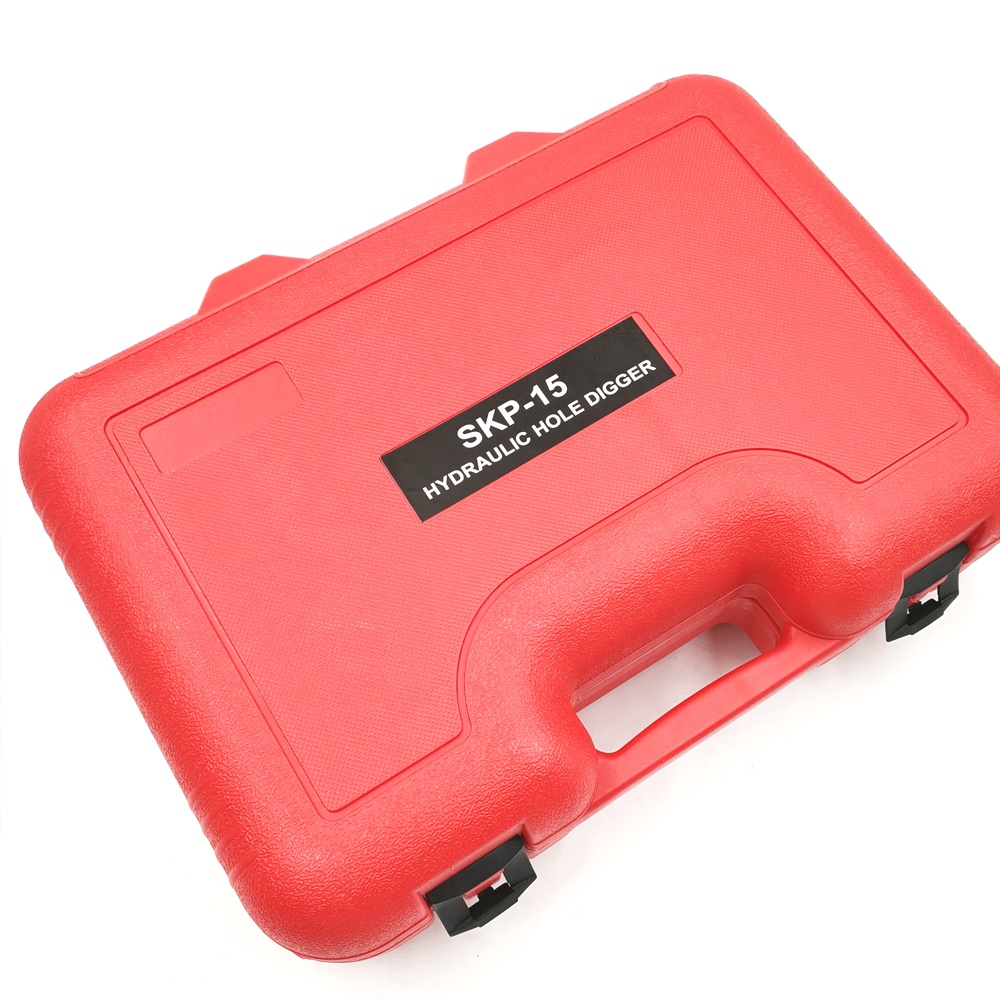

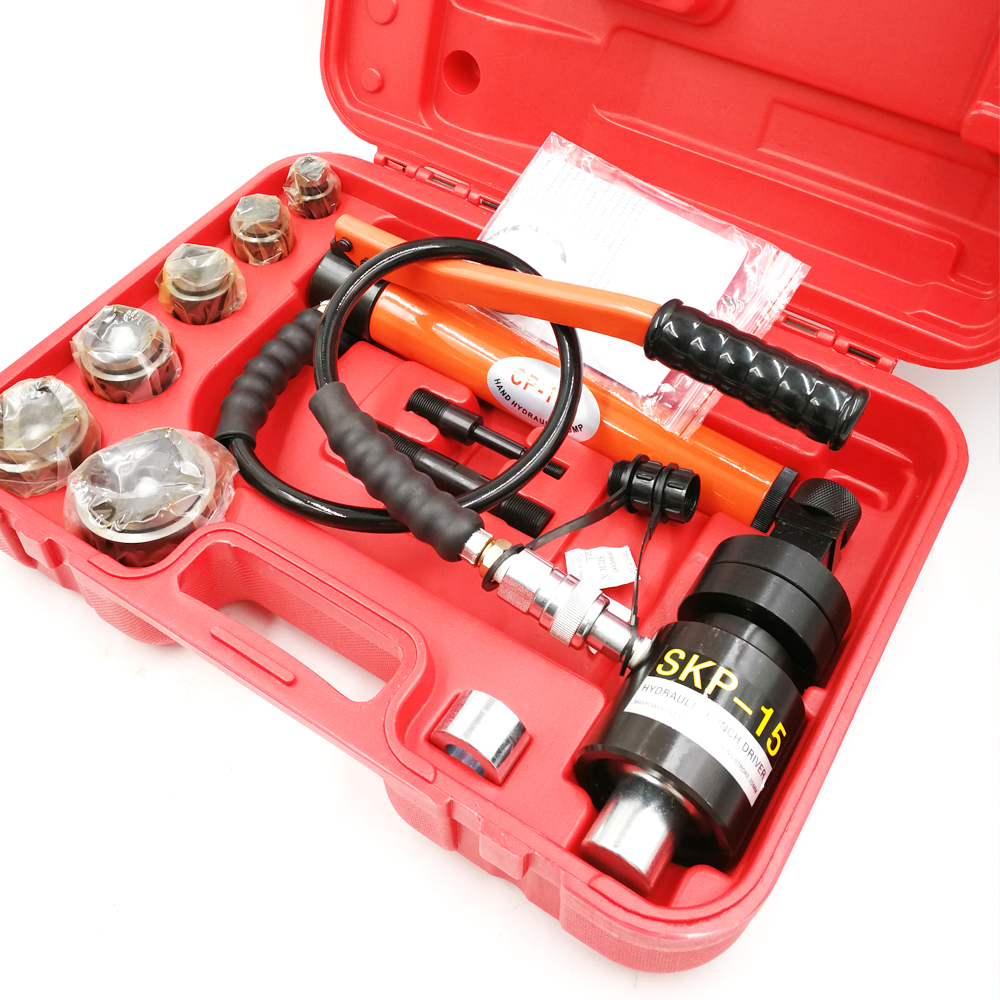

• Plastic case package for easy carrying and well tool protection.

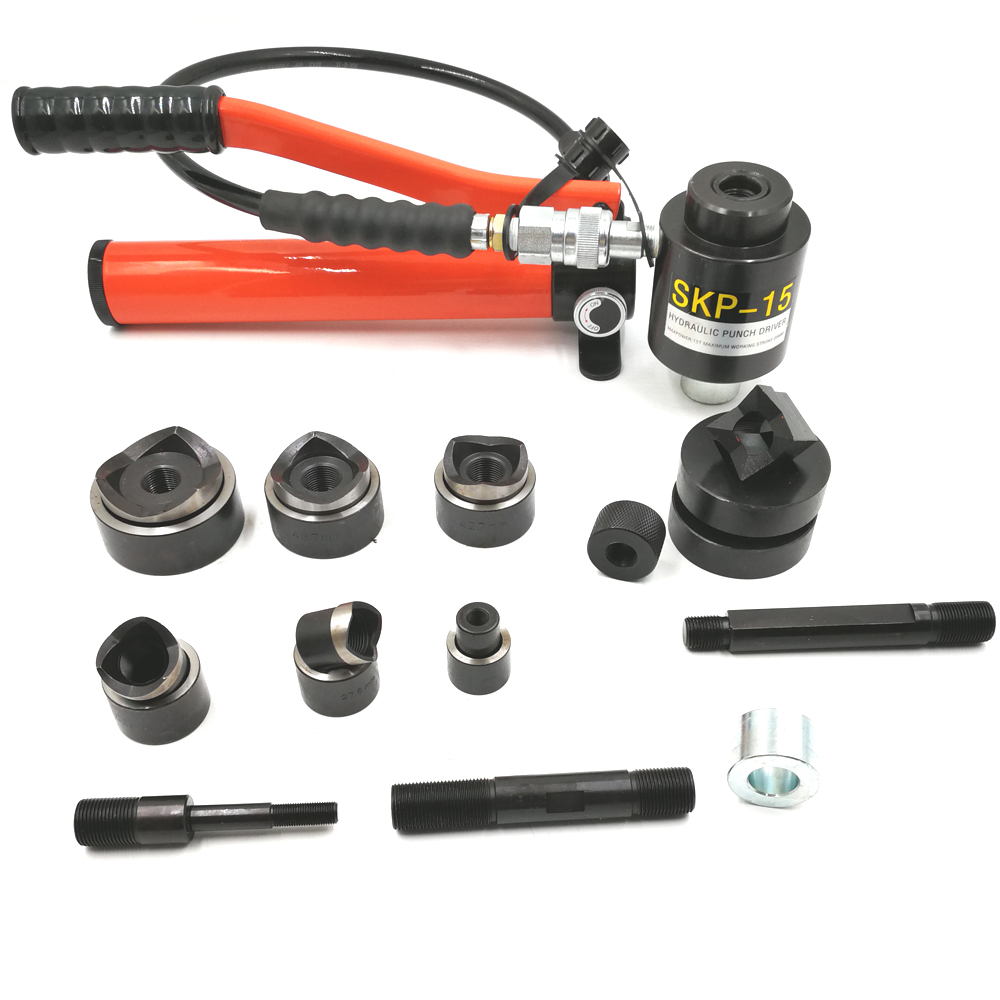

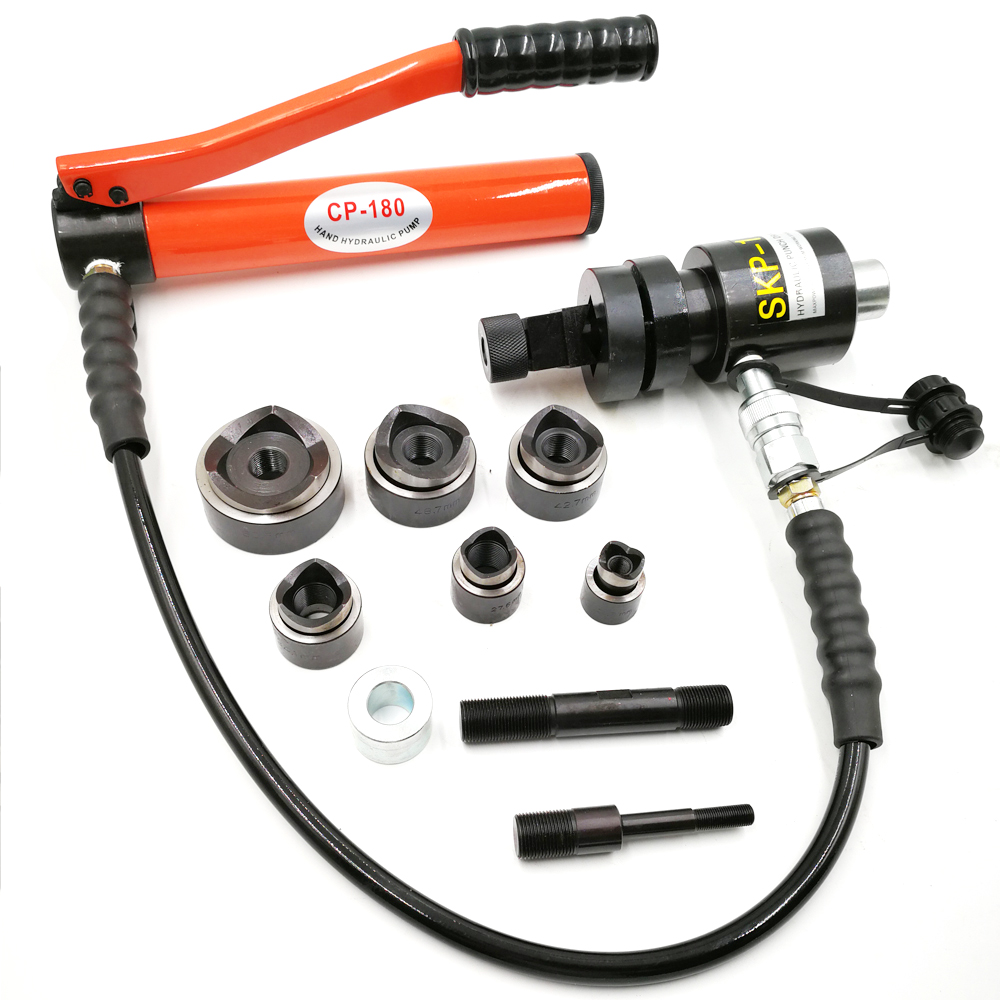

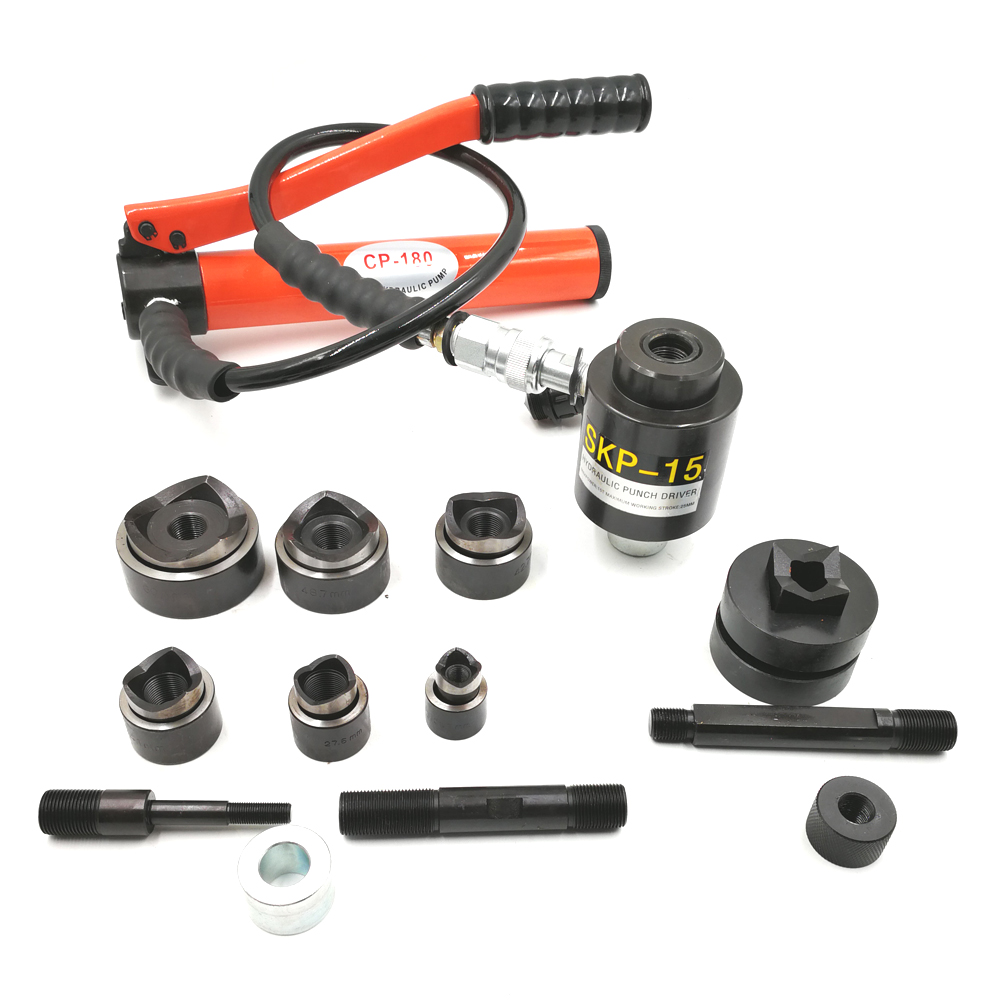

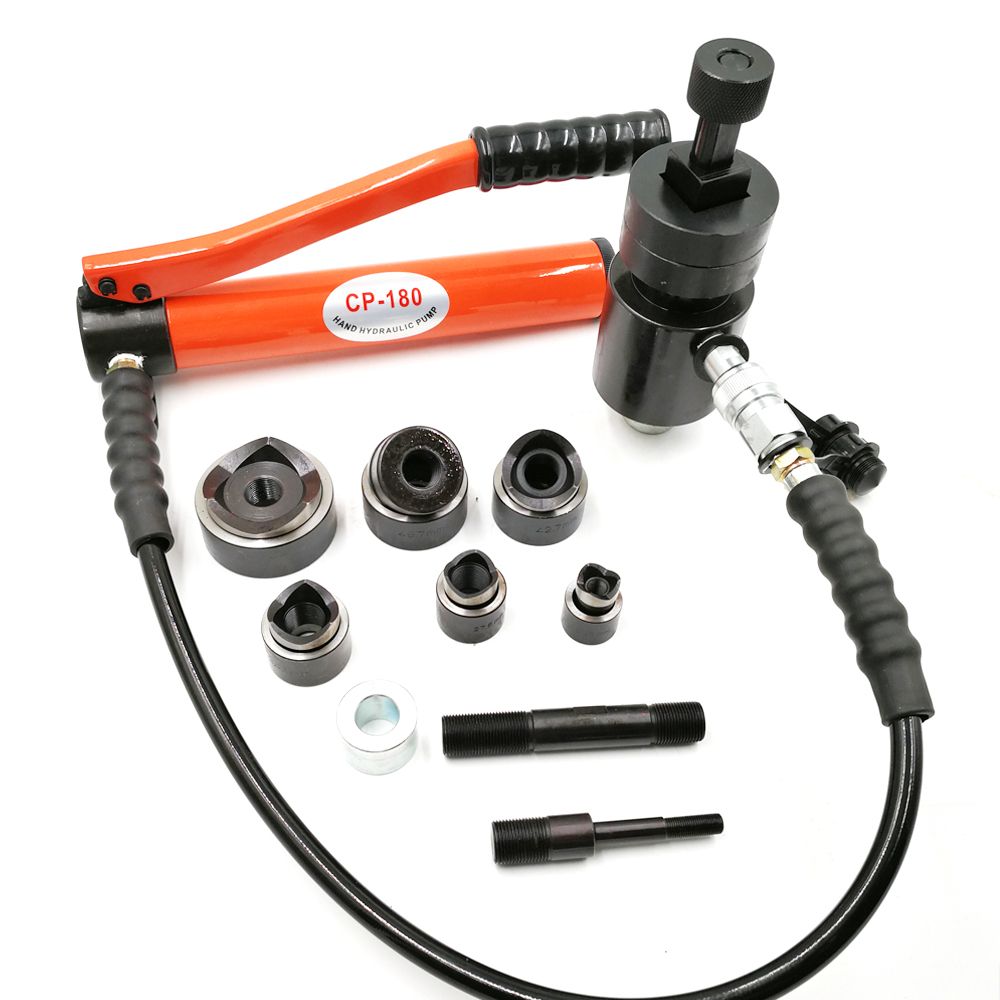

• Hole set include: 1*pump（CP-180）,1*hydraulic ram,2*draw stud, 1*spacer,1*oil pipe,6*dies set,Parameters:

Model	SKP-15
Stainless Steel plate	Max thickness 1.6mm
Mild steel plate	Max thickness3.2mm
Output	15 T
Oil Capacity	55CC
Working Pressure	600bar
Ram Stroke	25 mm
Weight	6.2kg
Included Dies Set: Round Dies	1/2” (Φ21.8mm) , 3/4”(Φ27.6mm), 1”(Φ34.1mm), 1 1/4”(Φ42.7mm), 1 1/2”(Φ48.7mm), 2”(Φ60.2mm)
