Installing a mini gantry crane involves several steps to ensure proper assembly and safe operation. Here's a general guide, but keep in mind that specific instructions may vary based on the manufacturer and model of the gantry crane. Always refer to the manufacturer's manual for the most accurate and up-to-date information. Additionally, it's recommended to have a qualified professional perform the installation.
Note: This guide assumes you have already chosen an appropriate location for the gantry crane, considering factors such as floor load capacity and overhead clearance.
Materials and Tools Needed:
Mini gantry crane kit
Bolts and nuts (included in the kit)
Wrenches
Socket set
Level
Tape measure
Lifting equipment (such as a forklift) to assist with assembly
Installation Steps:
Prepare the Site:
Ensure the floor is level and can support the load capacity of the gantry crane.
Check for overhead obstructions.

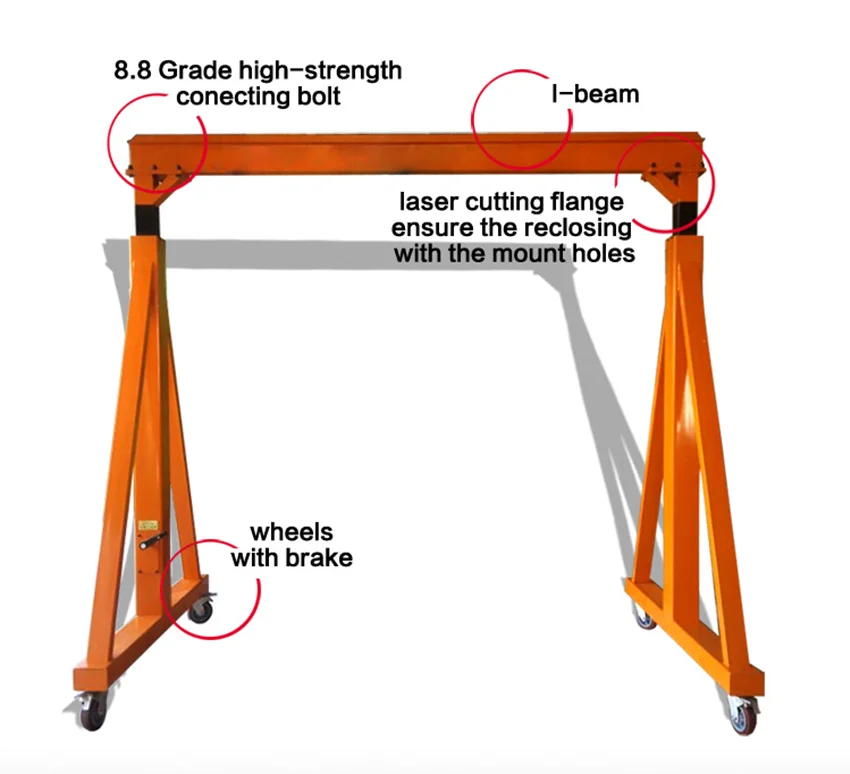

Assemble the Legs:
Lay out the components for the legs according to the manufacturer's instructions.
Connect the leg sections using bolts and nuts.
Tighten all connections securely.
Connect the Cross Beams:
Assemble the cross beams by connecting the beam sections.
Attach the cross beams to the legs using the provided bolts and nuts.
Double-check that all connections are tight.
Install the Wheels:
If your gantry crane has wheels, attach them to the bottom of the legs.
Ensure that the wheels can move freely and are securely attached.
Lift and Position the Crane:
Use lifting equipment to lift the assembled gantry crane.
Position it over the desired location.
Secure the Crane:
If applicable, use leveling feet or other means to secure the gantry crane in its final position.
Check that the crane is level.
Attach the Hoist:
Install the hoist on the cross beam according to the manufacturer's instructions.
Ensure that the hoist is properly secured and aligned.
Test the Gantry Crane:
Perform a test run of the gantry crane to ensure smooth operation.
Check for any unusual sounds or movements.
Safety Check:
Familiarize yourself with the safety features of the gantry crane.
Verify that all components are in good condition and that there are no loose bolts.
Training:
Train operators on how to use the gantry crane safely.
Always follow the manufacturer's instructions and guidelines for installation and operation. If you are unsure about any aspect of the installation process, consult with a professional or the manufacturer for assistance.
