Product Introduction

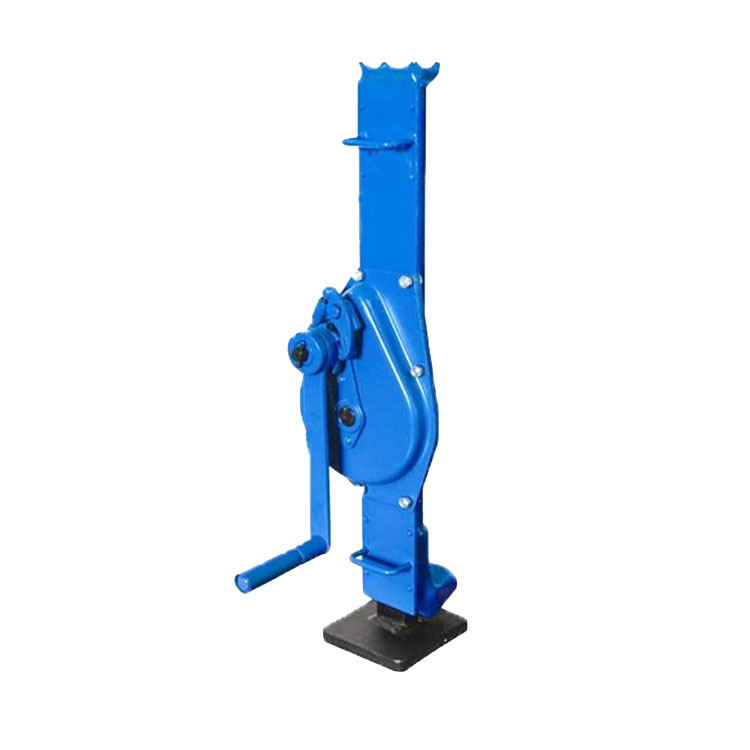

Hand Operated Lifting Mechanical Toe Ratchet Jack Hand Steel Jack

JT-A HANDLE -TYPE MECHANICAL JACK SPECIFICATIONS
Model		1.5t	3t	5t	10t	16t	20t	25t
Rated capacity(T)		1.5	3	5	10	16	20	25
Test load(KN)		18.4	36.8	61.3	122.5	196	245	306.3
Chain shake to lift full load(N)		150	280	280	560	640	640	640
Stroke(mm)		300	350	350	410	320	320	320
Mini.lifting height(mm)	F	60	70	80	85	95	100	110
Mini.lifting height(mm)	H	600	730	730	800	800	860	970

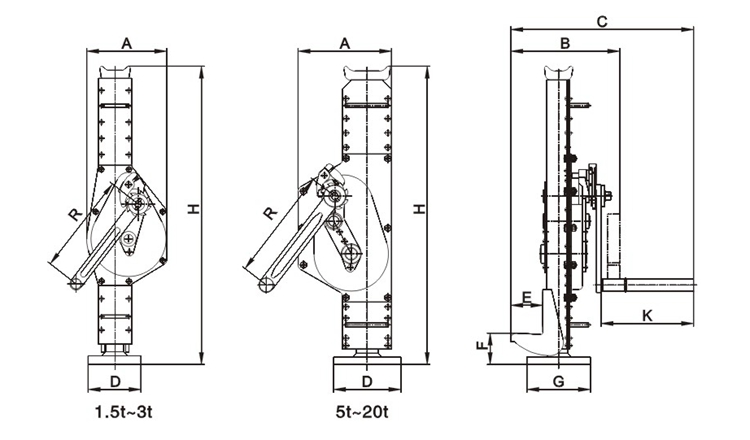

Dimensions（mm）	A	163	197	189	250	275	275	350
	B	190	200	239	293	320	335	340
	C	273	296	335	498	514	529	538
	D	100	130	140	140	150	150	170
	E	55	60	71	86	78	78	80
	G	110	140	170	170	180	180	200
	K	113	127	127	248	250	250	250
	R	225	250	275	300	300	380	380
N.W.(KG)		13.5	21.2	28.5	46.8	65	75	91
