Product Introduction

Product Description

                      powerteam hydraulic toe jack swivel type rotating hydraulic claw jack lift jack

A toe jack is a heavy duty piece of equipment that is designed to lift items with very low or high clearances.Toe jacks are ideal for moving loads that are lower down on the floor,such as heavy machinery.They are available in variety of different weight capacities too,making then suitable for a wide range of operation.
This is our swivel type hydraulic toe jack.
Specification of hydraulic toe jack
Model
XD-05
XD-10
XD-25
toe capacity
5T
10T
25T
min toe height
25mm
30mm
58mm
max toe height
230mm
260mm
273mm
min head height
368mm
420mm
505mm
max head height
573mm
650mm
720mm
base size
203*140mm
190*170mm
377*210mm
weight
21kg
32kg
105kg
package size
360*180*390mm
380*210*430mm
530*350*610mm

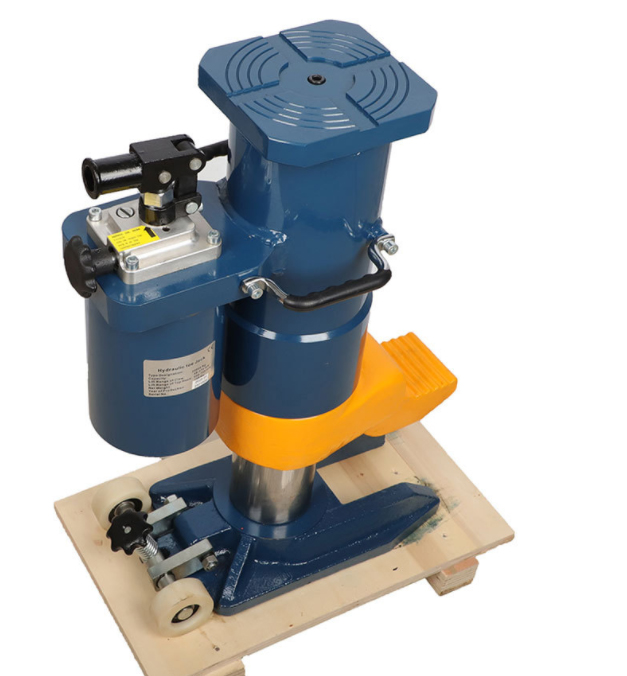

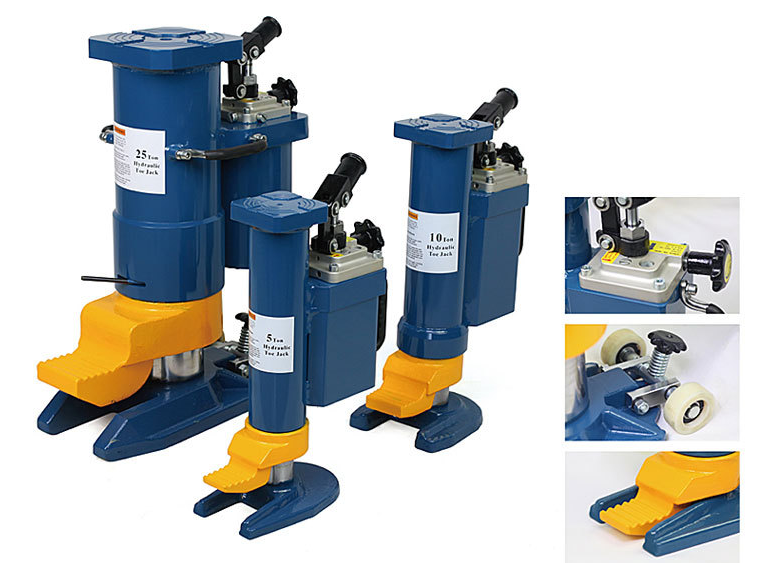

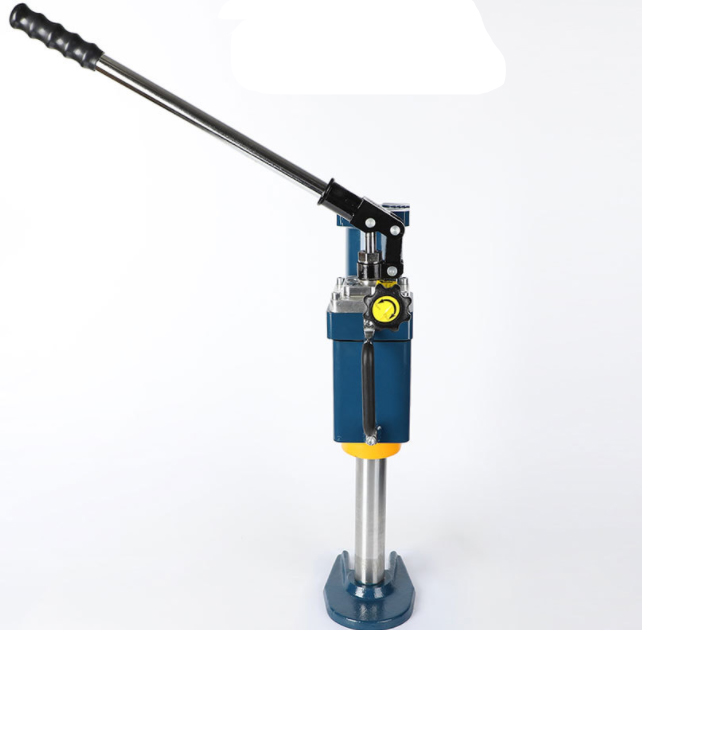

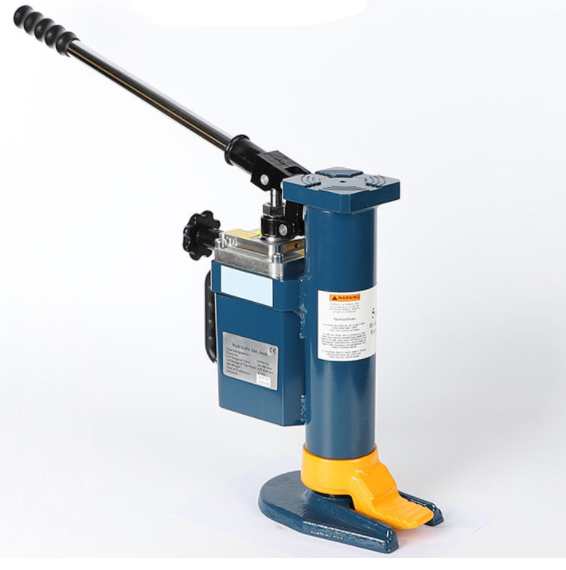

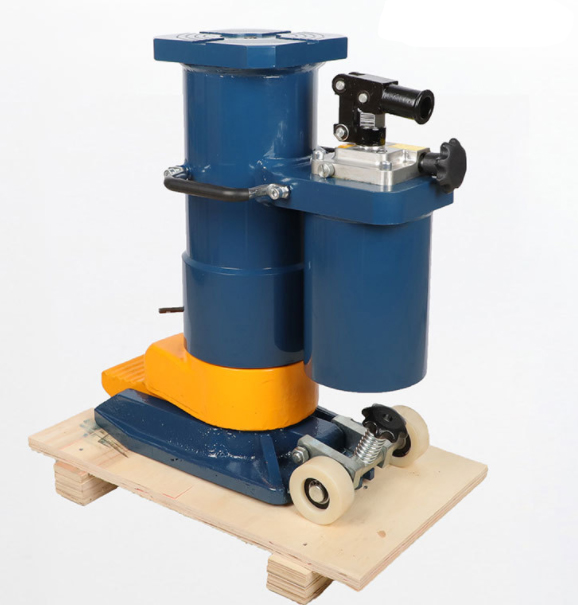

Detailed pictures of hydraulic toe jack
