8 wheels lifting Ring pulley block lifting puley block
We are a professional lifting equipment manufacturer in China, mainly responsible for the production, import and export of high quality lifting equipment, including rigging accessories.We warmly welcome you to buy superior quality equipment and accessories made in china here from our factory.
Send Inquiry
Product Introduction
Product name：8 wheels lifting Ring pulley block
Features: High-strength alloy steel die forging.
The manufacturing test tensile force is twice the rated load.
Sampling for breaking test.
Magnetic particle inspection.
The breaking force is 4 times the rated load.

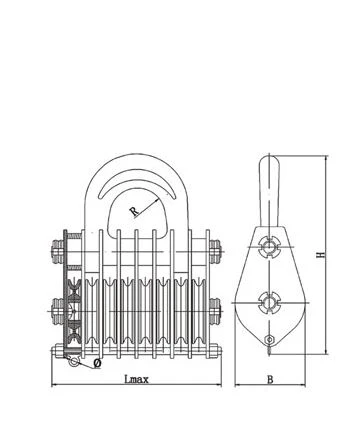

| 8 wheels lifting Ring pulley block | ||||||||||
| ITEM NO. | WLL(T) | TESTING LOAD (KN) | OUTSIDE SIZE | DIAMETER OF WIRE ROPE | DIAMETER OF WIRE ROPE | WEIGHT (Kg) | ||||
| H | B | Ltnax | (D | SUTIABILITY | MAX | R | ||||
| mm | mm | |||||||||
| SL-HQD8-80 | 80 | 1040 | 1105 | 365 | 740 | 44 | 26 | 28 | 125 | 480 |
| SL-HQD8-100 | 100 | 1300 | 1210 | 365 | 880 | 44 | 26 | 28 | 133 | 700 |
| SL-HQD8-160 | 160 | 2080 | 1320 | 460 | 910 | 60 | 31 | 35 | 145 | 1150 |
| SL-HQD8-200 | 200 | 2500 | 1500 | 510 | 1100 | 46 | 34 | 36 | 187 | 1500 |
