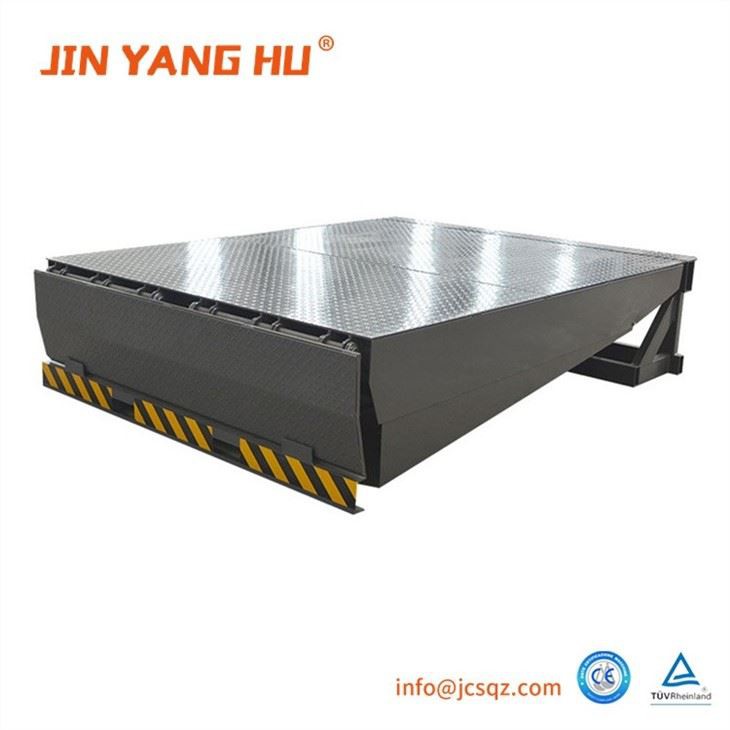

Electric Automatic Fixed Dock Leveler
Product Description of Electric Automatic Fixed Dock Leveler
The hydraulic fixed dock leveler is the special auxiliary equipment for the fast loading and unloading of goods. Its height adjustment function allows a bridge to be set up between the truck and the cargo platform in the warehouse. Through it, forklifts and other handling vehicles can directly drive into the truck for loading and unloading. Also called loading platform.


Product Features
1. Hydraulic power for easy operation.
2. The lip plate and the platform are connected by a long axis, which has high strength and reliability.
3. Imported seals ensure the excellent sealing performance of the hydraulic system.
4. The anti-skid pattern steel plate is used to make the platform have good anti-skid performance.
5. High-strength assistant outriggers, strong carrying capacity, stable and durable.
Product Parameters
| Model | Load(T) | Platform size(mm) | Working grade(mm) | Travel(mm) | Power(kW) | Pit size(mm) | |||
| upper lower | L | W | H | ||||||
| DCQ 6-0.55 | 6 | 2000x2000 | 400 | 300 | 250 | 0.75 | 2080 | 2040 | 600 |
| DCQ 6-0.7 | 6 | 2500 x 2000 | 400 | 400 | 300 | 0.75 | 2580 | 2040 | 600 |
| DCQ 8-0.55 | 8 | 2000x2000 | 400 | 300 | 250 | 0.75 | 2080 | 2040 | 600 |
| DCQ 8-0.7 | 8 | 2500x2000 | 400 | 400 | 300 | 0.75 | 2580 | 2040 | 600 |
| DCQ 10-0.55 | 10 | 2000x2000 | 400 | 300 | 250 | 0.75 | 2080 | 2040 | 600 |
| DCQ 10-0.7 | 10 | 2500 x 2000 | 400 | 400 | 300 | 0.75 | 2580 | 2040 | 600 |
Product Details

Product Show
