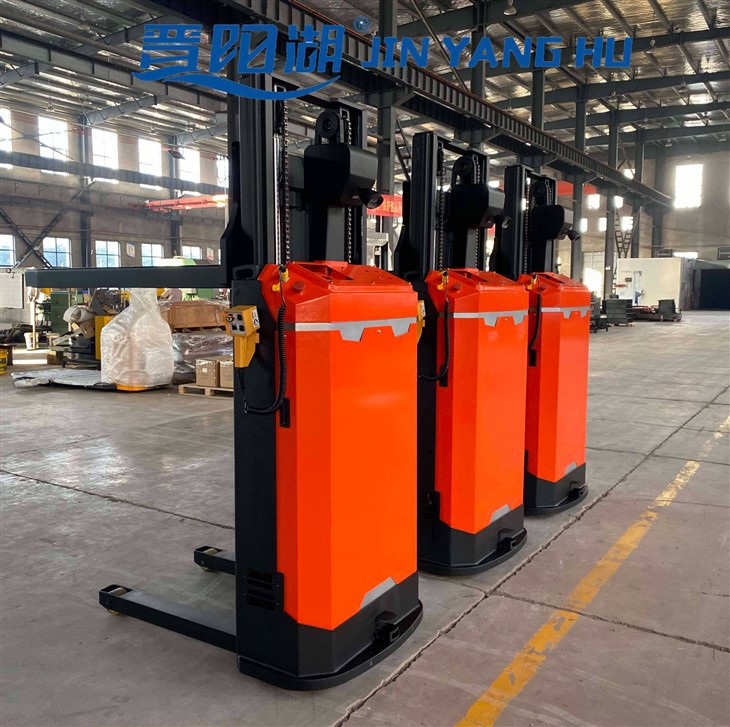

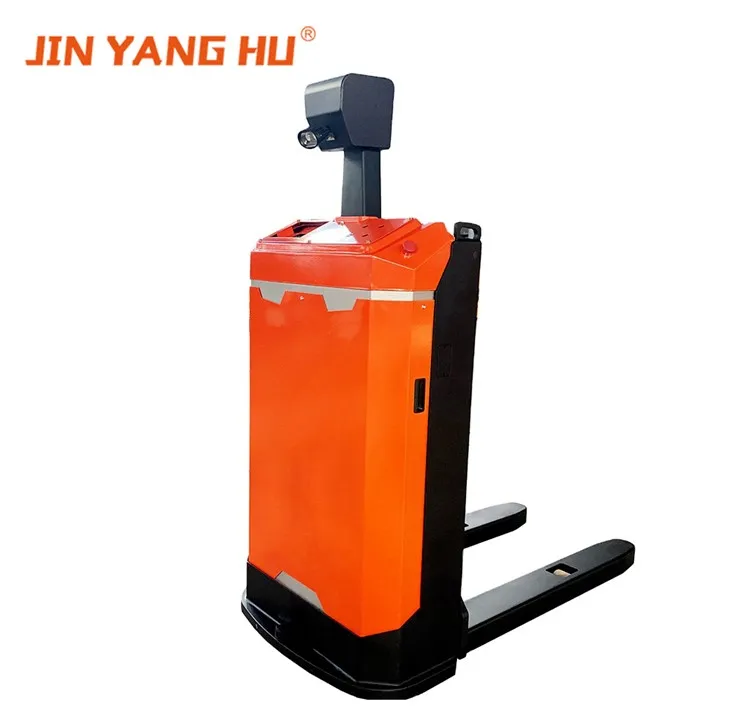

CDD10/15J Full Electric Pallet Stacker With Remote Control
Description of stacker
A full electric pallet stacker is a piece of heavy-duty equipment designed for the efficient and safe movement of pallets in a warehouse or industrial setting. This type of pallet stacker is powered entirely by electricity and features an array of advanced features that make it an excellent fit for a variety of applications. It typically comes equipped with a heavy-duty battery, a powerful electric motor, and a robust hydraulic lifting system that enables it to quickly and safely lift heavy pallets to various heights.
Details of stacker
●Short wheelbase, ultra-short body
●U.S. CURTIS brand drive control system
●Wire control debugging integrated handle
●Electromagnetic hydraulic valve, down proportional valve
●Low noise hydraulic pump, hydraulic pump control
●CAN communication lithium battery
● Navigator holder
●All kinds of sensor switch brackets
●Body damping system
●Curve automatic deceleration device
●Drive stepless speed regulation
●Controller multiple brake protection system
●Emergency braking device
●Cylinder safety cut-off valve
●Blue light warning
Parameters of truck
|
model |
CDD15J-16 |
|
|
Rated load |
Kg |
1500 |
|
load center distance |
mm |
500 |
|
wheelbase |
mm |
895 |
|
vehicle weight |
kg |
850 |
|
tire type |
Polyurethane |
|
|
Mast type |
Secondary gantry |
|
|
drive wheel |
mm |
230*75 |
|
training wheel |
mm |
100*50 |
|
Lifting height |
mm |
1600 |
|
vehicle length |
mm |
1600 |
|
Vehicle width |
mm |
890 |
|
Vehicle height (including laser fixing seat) |
mm |
1950 |
|
Fork size |
mm |
1150/190/65 |
|
Fork outer width |
mm |
780 |
|
Travel speed, full/empty |
Km/h |
5 /5.5 |
|
Lifting speed, full/empty |
mm/s |
90/120 |
|
Descending speed, full/empty |
mm/s |
140/110 |
|
Drive motor power |
KW |
1.5 |
|
Lifting motor power |
KW |
twenty two |
|
Lithium battery, voltage/rated capacity |
V/AH |
24/160 |
Product Display
Packing&Delivery
FAQ
Q: What is the minimum order quantity? (MOQ)
A: Normally 500pcs/item. Trial orders and further requests can be negotiated.
Q: Can I order one sample?
A: Sure. Sample is provided by reasonable charges,the sample charge will be refund after the order is placed.
Q:What is the delivery time?
A: Maximum 50 days after receiving the relevant payment, samples is 5-10 working days around.
Q: What are the advantages of using a full electric pallet stacker?
A: Some advantages of using a full electric pallet stacker include increased efficiency, reduced physical strain on operators, and greater maneuverability in tight spaces.
Q: How high can a full electric pallet stacker lift?
A: The maximum lifting height of a full electric pallet stacker can vary depending on the model, but they can typically lift loads up to 5-6 meters high.
Q: What is the weight capacity of a full electric pallet stacker?
A: The weight capacity of a full electric pallet stacker can also vary depending on the model, but they can typically lift loads weighing up to 2,500-3,000 kilograms.
