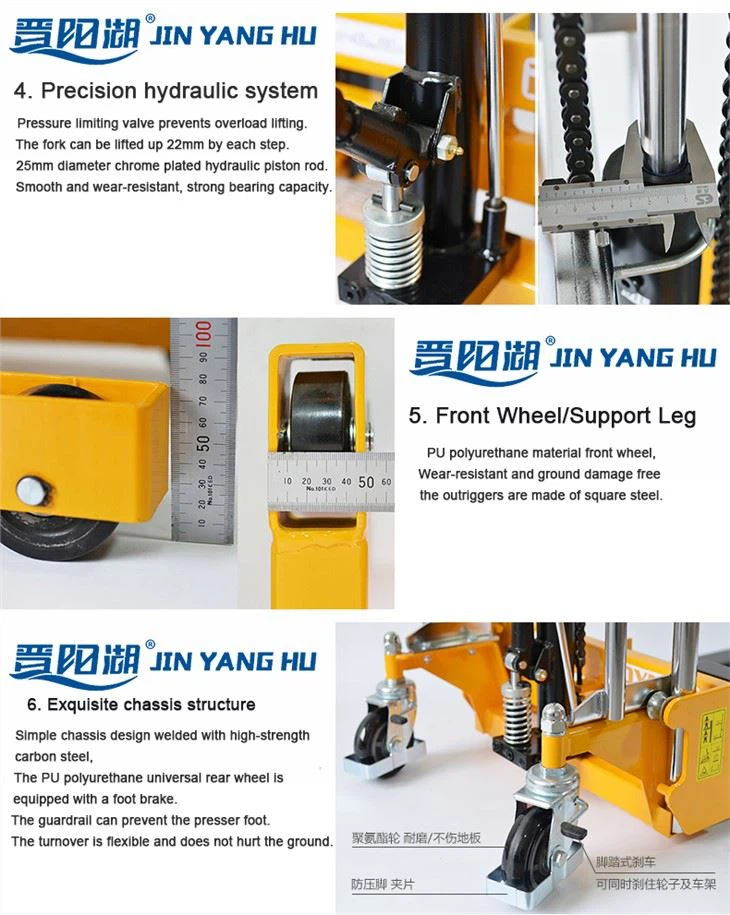

C-beam Manual Hand Pallet Stacker
Product Introduction
The Manual Pallet Stacker is a small vehicle with a power transmission device and powerlifting device, capable of loading, unloading, handling, and stacking pallets and palletized goods, which belongs to the battery class stacking vehicles. The Manual Pallet Stacker is suitable for operation in narrow passages and limited space and is an ideal tool for the warehousing and logistics industry. We have a complete range of product specifications to meet different needs.
Features
Compared with similar products in the market, we believe that our Manual Pallet Stacker is of better quality and lower price. Our stacker truck adopts a standard Eoslift handle with a more scientific ergonomic design to improve comfort and reduce fatigue. In addition, it uses original German seals with a service life of up to 3 years. All forks are reinforced at the back to ensure the strength and durability of the stacker truck.
Specification
Specified load | kg | 1000 | 1500 | 1000 |
Minimum fork height | mm | 85 | 85 | 85 |
Maximum fork height | mm | 1600 | 1600 | 2500 |
Minimum height of the mast | mm | 1980 | 1980 | 1830 |
Fork size | mm | 150/160x60 | 150/160x60 | 150/160x60 |
Fork length | mm | 900/1150 | 900/1150 | 900/1150 |
Fork width (adjustable/fixed) | mm | 330~740/550 | 330~740/550 | 330~740/550 |
Turning radius | mm | 1250/1380 | 1250 | 1250/1000 |
weight | kg | 240/220 | 260 | 300 |
Fork wheel | mm | Φ74x70 | Φ74x70 | Φ74x70 |
Big wheel | mm | Φ180x50 | Φ180x50 | Φ180x50 |
● Conforms to EN ISO3691-5: 2009
