Multifunctional Electric cable Winch Hoist 500kg hoist
Product Description
Multifunctional Wire Rope Electric winch is a kind of electric hoist, which can be used for ground and high-place transportation. It is widely used in the construction industry. It has the characteristics of a large conveying chain, high height, and stable and reliable work. The rated increase weight of the multi-function electric hoist is 500kg/300kg; the maximum increase height of the multi-function electric writing hoist is 100m; the multi-function electric hoist can increase the speed by 500kg up to 5.5m/min; increase by 300kg, the speed can reach 8m/ min.
Product Features
1.Pure copper motor.
2.Anti-rotating wire rope, protect the machine.
3.Can be placed flat, can be suspended, can be used with trolley.

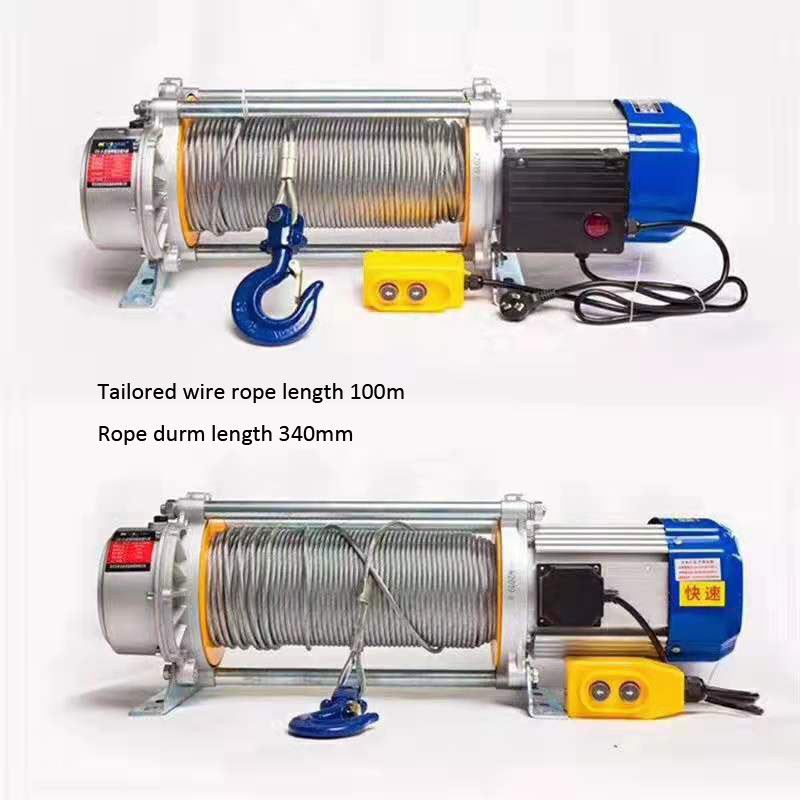

Product Show
For more details, please find in the download files
Product Parameters
| Model | CD-K1 500-1000 | CD-K1 600-1200 | CD-K1 750-1500 |
| Rated voltage | 220V/50HZ | 1200 380V/50HZ | 220V/50HZ |
| Power | 3.0KW | 2.2 KW | 4.0KW |
| lifting height | l~100m | l~100m | l~100m |
| lifting speed | 14m（sigle rope） | 14m（sigle rope） | 16m（sigle rope） |
| 7m(double rope) | 7m(double rope) | 7m (double rope) | |
| lifting weight | 500kg（sigle rope） | 600kg（sigle rope） | 750kg（sigle rope） |
| 1000kg(double rope) | 1200kg(double rope) | 1500kg(double rope) | |
| Dia of wire rope | 6mm | 6mm | 7mm |
