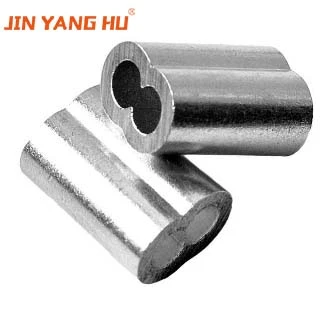

8-shaped Aluminum Sleeve Seamless Extruded Aluminum Material, With Good Toughness, And Easy To Press Without Cracking.

Aluminum Ferrule (Swage Sleeve) is an essential fitting for wire rope termination, produced strictly following DIN3093 and EN13411-3 industrial standards. The raw material adopts seamless extruded 6063 aluminum alloy without welding seam, which guarantees stable ductility during compression and avoids cracking under standard crimping operation.

We provide two mainstream structures for global customers: oval single-hole ferrule and hourglass double-hole ferrule. The oval single-hole sleeve is the most widely used model, suitable for forming eye loops when a single wire rope passes through the sleeve. The hourglass double-hole ferrule allows folded double wire rope to run through two separate holes, distributing load evenly and improving connection stability for light and medium tension systems.

This fitting works by plastic deformation under external compression. Operators can use hand crimping pliers for small sizes or hydraulic swaging machines for larger specifications. After proper compression, the aluminum sleeve tightly clamps steel wire strands to prevent slippage. Compared with wire rope clips, aluminum ferrules feature compact appearance, lighter weight and easier installation without bolts. Natural silver aluminum finish is standard; customized surface treatment can be arranged upon request.

Our size range covers 1mm to 60mm, perfectly matching galvanized steel wire rope and stainless steel wire rope. Typical application fields include stainless steel cable railing systems, sunshade and awning tension cables, yacht and small marine rigging, outdoor advertising bracing, container cargo securing, agricultural facility cable fixing and mechanical equipment wire rope assembly.

Important safety instruction: Aluminum ferrules are disposable fittings and cannot be reused after swaging. The connection efficiency will decrease if improper crimping force is applied. For overhead lifting service, please follow official specification on required number of sleeves. Avoid severe shock load on swaged wire rope terminals. Each size must be selected strictly according to the matched wire rope diameter.

✅ Complies with DIN3093 & EN13411-3

✅ Seamless extruded 6063 aluminum alloy

✅ Two types: Oval single hole & Hourglass double hole

✅ Disposable swage design, stable clamping force

✅ Support hand tool and hydraulic machine crimping

✅ Full range sizes 1mm ~ 60mm

✅ Smooth natural aluminum finish, anti-corrosion

✅ Widely matched with steel & stainless steel wire rope
