Screw Pin Bow Shackle

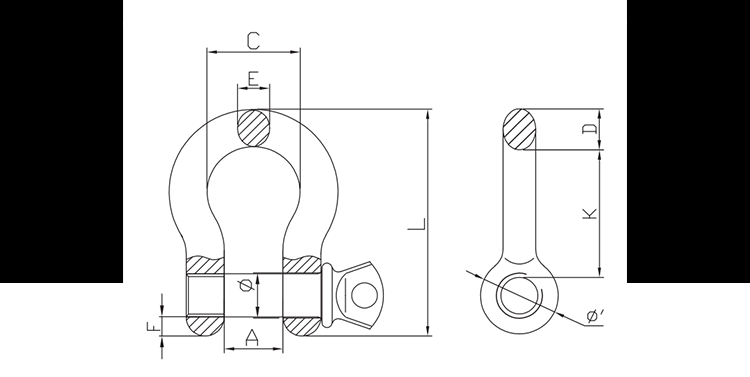

PRODUCT DESIGN DRAWING
SLR-364 high strength screw pin bow shackle
♦
PARAMETERS
| ITEM NO. | WEIGHT(Kg) | WLL(T) | B.L(T) | A | C±1.2 | D±0.5 | E±0.5 | F±0.5 | φ±0.2 | L±2 | K±2 | φ′±1 |
| SLR364-3/16 | 0.022 | 0.33 | 1.98 | 9.7±1 | 15.3 | 4.8 | 4.8 | 3.4 | 7.2 | 37.5 | 21.6 | 14.2 |
| SLR364-1/4 | 0.04 | 0.5 | 3 | 12±1 | 19.8 | 6.4 | 6.35 | 3.4 | 8.7 | 46.8 | 28 | 15.5 |
| SLR364-5/16 | 0.08 | 0.75 | 4.5 | 13.5±1 | 21.4 | 8 | 8 | 4 | 11 | 53 | 29.8 | 19 |
| SLR364-3/8 | 0.13 | 1 | 6 | 16.8±1.2 | 26.2 | 9.7 | 9.7 | 5 | 13.5 | 63.2 | 35.5 | 23 |
| SLR364-7/16 | 0.21 | 1.5 | 9 | 19±1.2 | 29.5 | 11.2 | 11.2 | 6 | 15 | 78 | 42 | 27 |
| SLR364-1/2 | 0.32 | 2 | 12 | 20.6±1.2 | 33.3 | 13.5 | 13.5 | 6.6 | 17.5 | 83.3 | 47 | 30 |
| SLR364-5/8 | 0.67 | 3.25 | 19.5 | 27±1.2 | 42.9 | 17.5 | 16 | 8.3 | 21.5 | 106.5 | 59 | 38 |
| SLR364-3/4 | 1.04 | 4.75 | 28.5 | 32±1.5 | 50.8 | 20.6 | 19 | 10.75 | 23.5 | 126.5 | 71 | 46 |
| SLR364-7/8 | 1.64 | 6.5 | 39 | 36.6±1.5 | 58 | 24.6 | 22.4 | 13.3 | 27.5 | 148 | 83 | 53 |
| SLR364-1 | 2.51 | 8.5 | 51 | 43±1.5 | 68.4 | 27 | 25.4 | 15.75 | 30.5 | 167 | 94 | 60.5 |
| SLR364-1-1/8 | 3.77 | 9.5 | 57 | 46±1.5 | 74 | 31.8 | 29.5 | 18.2 | 32.5 | 190 | 108 | 68.3 |
| SLR364-1-1/4 | 4.98 | 12 | 72 | 51.6±2 | 82.6 | 35 | 32.7 | 19 | 38.7 | 209.6 | 117 | 76.2 |
| SLR364-1-3/8 | 6.01 | 13.5 | 81 | 57±2 | 92.2 | 36 | 36 | 21 | 41.7 | 232.7 | 134 | 84 |
| SLR364-1-1/2 | 8.3 | 17 | 102 | 60.5±2 | 98.6 | 41 | 39 | 25.3 | 42 | 254 | 146 | 92.2 |
| SLR364-1-3/4 | 17 | 25 | 150 | 73.2±3 | 127 | 57 | 46.7 | 27.8 | 51 | 313.5 | 177 | 106.4 |
| SLR364-2 | 21.7 | 35 | 210 | 82.5±3 | 146 | 61 | 52.8 | 31.5 | 59.5 | 347.5 | 196 | 127 |
| SLR364-2-1/2 | 45.6 | 55 | 330 | 105±3 | 184 | 79.5 | 68.8 | 37.1 | 70.5 | 453 | 266 | 147.7 |
♦ Notes ♦
1) Before each use, the operator must perform a safety inspection on the sling and use it only after being qualified;
2) The sling must be inspected regularly by professionals (trained qualified personnel) every month;
3) If it is found that the dimensional wear of the sling is greater than 5% of the original size, it must be replaced in time;
4) If it is found that the amount of dimensional deformation exceeds 3% of the original size, it must be replaced in time to ensure safety.
