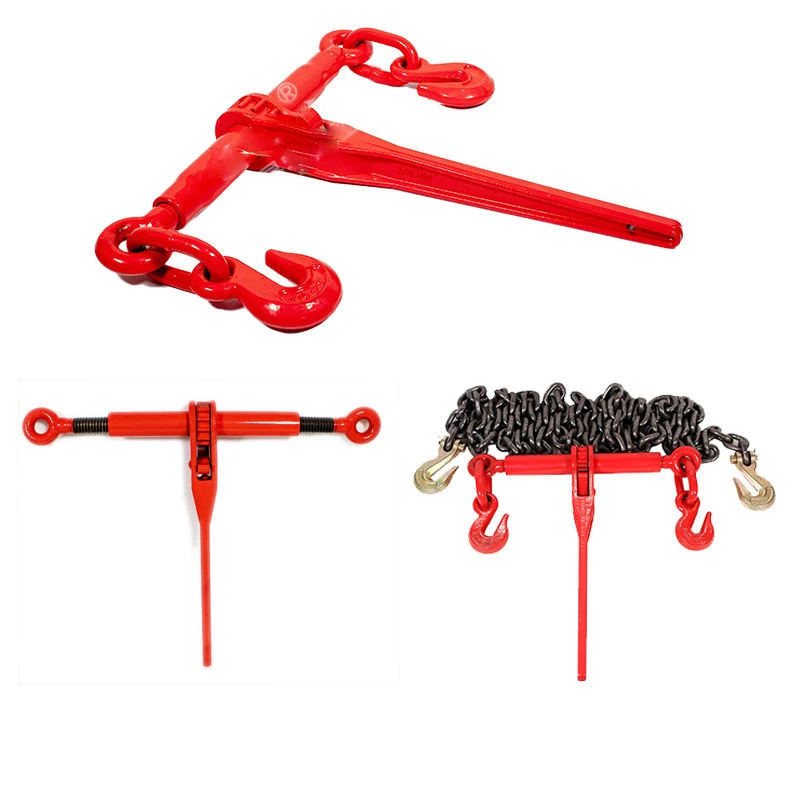

Ratchet‑type Load Binder Complete With Grab Hooks

This ratchet‑type load binder is heavy‑duty chain lashing hardware drop‑forged from premium alloy steel, subject to strict quenching and tempering heat‑treatment to deliver high tensile strength, good impact resistance and consistent mechanical performance for demanding transportation and industrial securing scenarios. The whole assembly is finished with high‑adhesion bright red paint coating, providing reliable anti‑rust protection against atmospheric moisture, minor scratches and abrasion during daily site operation; the striking red colour also enables quick visual inspection for damage on worksites, trucks and freight yards.

Constructed with robust ratchet gear mechanism, adjustable threaded turnbuckle sections and two heavy‑duty drop‑forged grab hooks, this load binder is designed to connect and tension grade 70 or grade 80 transport chain for cargo securing. Operators build up lashing tension gradually by repeated reciprocating pressing movements on the long ratchet handle. Unlike lever‑type load binders which carry well‑known risk of sudden violent handle spring‑back during tightening or releasing, ratchet operating mode largely eliminates this safety hazard, bringing higher operation stability for field workers. The threaded turnbuckle structure offers ample adjustment travel, allowing operators to compensate for varying slack lengths of chain when fastening different‑size cargo loads.

⚠️ Mandatory Safety Statement: This load‑binder product is engineered exclusively for ground‑level cargo lashing, tie‑down and securing purposes. It shall NEVER be used for overhead lifting, hoisting, suspending loads, overhead pulling or towing applications. Misapplication for lifting service will generate unexpected stress distribution inside components and may lead to sudden catastrophic fracture of the binder assembly, which will result in severe equipment damage and fatal personal injury. Users must separate lashing‑rated load binders from lifting‑rated lifting hardware on‑site.

Manufactured and tested in full compliance with European standard EN 12195‑3 for chain lashing devices, each finished unit carries CE marking. Every individual load binder has passed mandatory proof‑load testing before shipment. Traceable test certificates can be issued upon customer request for project tender, import customs clearance and quality archive requirements.

It covers multiple size ranges to match different chain diameters and corresponding working load limits. Widely adopted for heavy‑duty road haulage, truck and semi‑trailer cargo tie‑down, container loading‑securing, heavy machinery transportation, workshop material fixing and logistics yard operation. Before every use, operators shall conduct full visual check for crack, deformation, thread damage, hook distortion, coating peeling and ratchet‑mechanism jamming. Any defective load binder must be withdrawn from service immediately and shall not be repaired or re‑welded. Proper matching between load‑binder WLL and chain grade & chain dimension must always be followed; overloading is strictly prohibited.
