Product Introduction

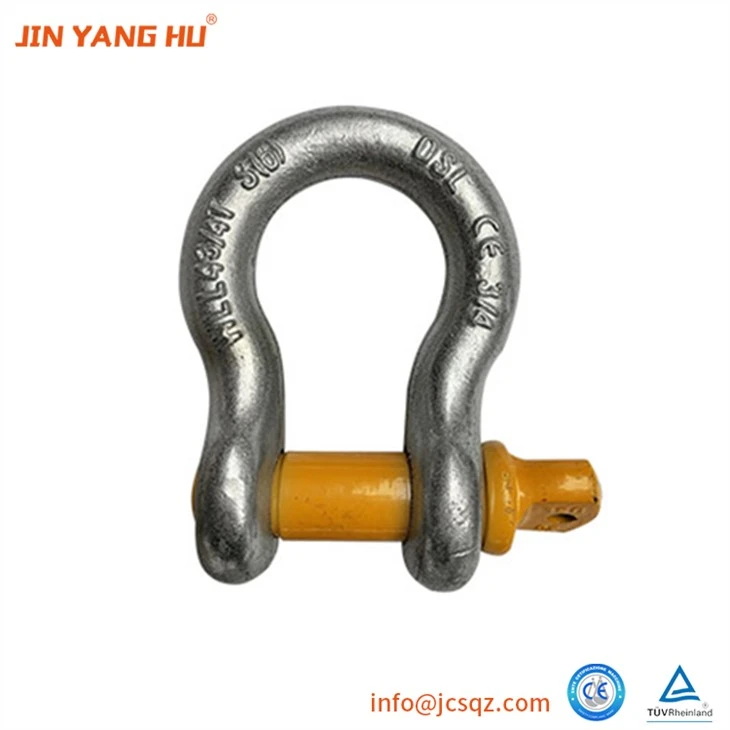

S6 Level BW shackle
Features: High-strength alloy steel die forging.
The manufacturing test tensile force is twice the rated load.
Sampling for breaking test.
Magnetic particle inspection.
The breaking force is 4 times the rated load.

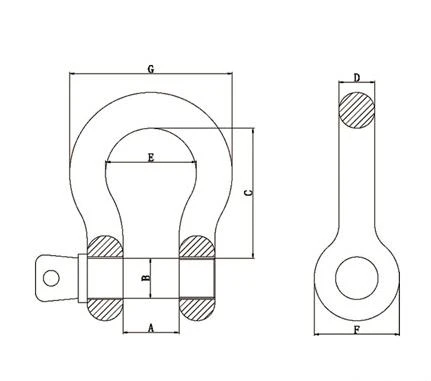

| S6 GRADE BW TYPE SHACKLE | |||||||||
| ITEM NO | WLL/T | A(MM) | B(MM) | C(MM) | D(MM) | E(MM) | F(MM) | G(MM) | WEIGHT |
| SL-S1002-2 | 2 | 21 | 16 | 48 | 13 | 33 | 30 | 59 | 0.35 |
| 9.-S1002-3.25 | 3.25 | 27 | 19 | 61 | 16 | 43 | 38 | 75 | 0.65 |
| SL-S1OO2-4 75 | 4.75 | 32 | 23 | 71.5 | 19 | 51 | 46 | 89 | 1.01 |
| SL-S1002-6.5 | 6.5 | 37 | 25 | 84 | 22.5 | 58 | 53 | 103 | 1.7 |
| SL-S1002-8.5 | 8.5 | 43 | 29 | 95 | 25.5 | 68 | 60.5 | 119 | 2.5 |
| SL-S1002-9.5 | 9.5 | 46 | 32 | 108 | 30 | 74 | 68.5 | 134 | 3.4 |
| SL-S1002-12 | 12 | 52 | 35 | 113 | 33 | 83 | 76 | 147 | 4.6 |
| SL-S1002-13.5 | 13.5 | 57 | 38 | 133 | 36 | 92 | 84 | 162 | 6.2 |
| SL-S1002-17 | 17 | 60.5 | 42 | 146 | 39 | 99 | 92 | 175 | 7.7 |
| SL-S1002-25 | 25 | 73 | 51 | 178 | 47 | 127 | 106.5 | 216 | 12.9 |
| SL-S1002-35 | 35 | 83 | 57 | 197 | 53 | 146 | 122 | 248 | 20.5 |
| SL-S1002-55 | 55 | 105 | 70 | 267 | 69 | 184 | 144.5 | 317 | 37.6 |
| SL-S1002-85 | 85 | 135 | 83 | 330 | 76 | 200 | 165 | 352 | 57 |
| SL-S1002-120 | 120 | 145 | 95 | 372 | 92 | 229 | 203 | 413 | 113 |
