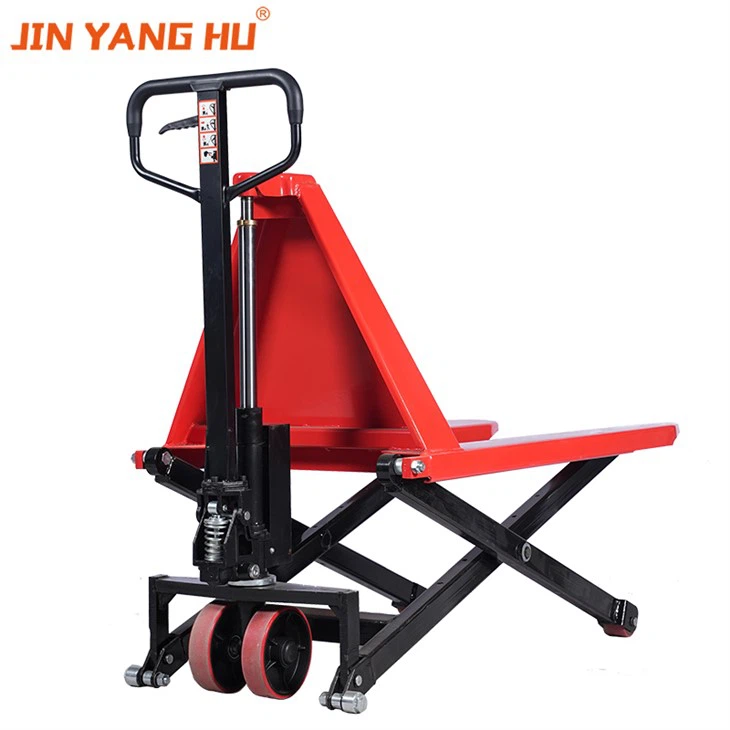

High Lift Manual Pallet Jack
High Lift Manual Pallet Jack
High Lift Manual Pallet Jack
High Lift Manual Pallet Jack
High Lift Manual Pallet Jack
High Lift Manual Pallet Jack

High Lift Manual Pallet Jack

Compared with conventional hand pallet jack, high lift manual pallet jack can lift higher. lt can be used as traditional hand pallet jack and also lifting equipment. Raising forks when load goods, which can reduce handing distance and lower laborintensity.

Send Inquiry

Product Introduction

JCS High Lift Manual Pallet Jack Especially Designed for Efficient Handling

product-800-436

JIN YANG HU high-lift pallet truck is an ergonomic combination of a pallet truck and lift table. Can be used for transporting and lifting palletised loads. This Manual High Lift Pallet Jack, 3300 lbs, Fork Size 21 x 45, is designed to significantly improve material handling. With a lifting capacity of up to 3300 lbs and a high lift feature, it is perfect for tasks that require high-altitude lifting and precise positioning. Its 21 x 45 inch fork size accommodates various pallet sizes, making it a versatile choice for warehouses, manufacturing facilities and retail environments.

product-1000-686

Product Model	Unit	JCS-HL01-550	JCS-HL01-685
Rated Load	kg	1500	1500
Min. Fork Height	mm	85	85
Max. Fork Lift Height	mm	800	800
Max. Lift Stroke	mm	＞710	＞710
Wheel Type		Polyurethane/Nylon	Polyurethane/Nylon
Big Wheel Dimension	mm	180*50	180*50
Dual Wheel Dimension	mm	74*55	74*55
Overall Height	mm	1208	1208
Overall Length	mm	1580	1580
Fork Length	mm	1150	1150
Fork Outer Width	mm	550	685
Fork Thickness	mm	55	55
Max. Height of Walking Fork after Lifting	mm	190	190
Single Fork Width	mm	160	160
Turning Radius	mm	1306	1306
Self Weight	kg	120	130
