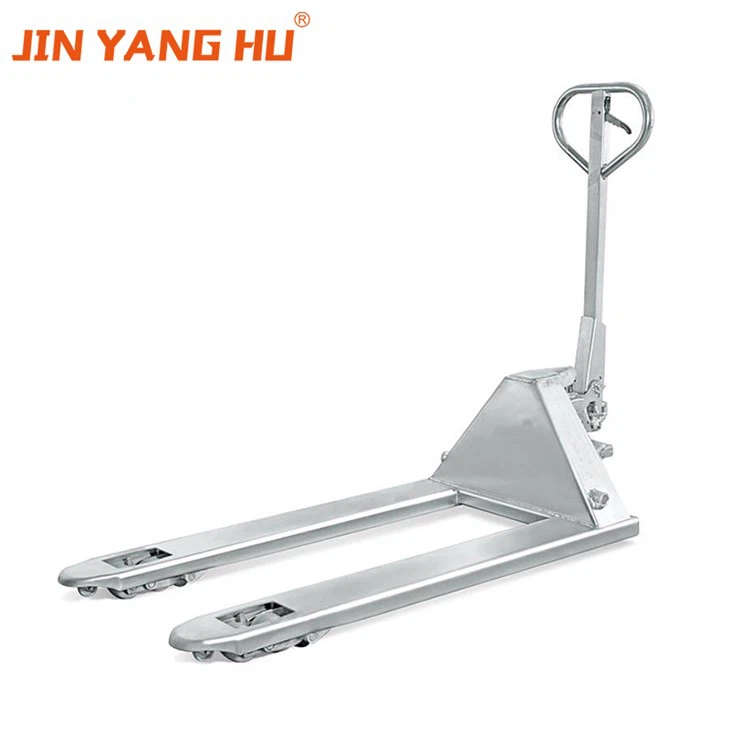

Stainless steel manual pallet truck is a piece of equipment used in warehouses, factories, and other industrial settings to effortlessly move and transport heavy loads, primarily on pallets. It is constructed using stainless steel material, which offers exceptional durability, corrosion resistance, and hygiene. The manual pallet truck features a robust frame with two forks that can be easily inserted underneath a palletized load. By using a manual pump handle, the operator can raise and lower the forks to lift and lower the load. The handle also allows the user to maneuver the pallet truck efficiently by pulling or pushing it.

Send Inquiry

Product Introduction

JIN YANG HU Stainless Steel Hand Pallet Truck is a versatile and durable tool specifically designed for materials handling in environments that require high levels of cleanliness and corrosion resistance. The entire body of JIN YANG HU Stainless Steel Manual pallet truck is made from premium-quality stainless steel, ensuring excellent resistance to rust, corrosion, and chemicals. This makes it suitable for use in food processing plants, pharmaceutical facilities, cleanrooms, and other hygienic environments.

product-750-630

JIN YANG HU Stainless Steel Manual Pallet Trucks are equipped with a hydraulic system that plays a crucial role in the lifting and lowering functions of the truck. By utilizing hydraulic pressure, controlled by the pump, control valve, and release valve, the system provides smooth and precise movements of the forks. Regular maintenance, including checking hydraulic fluid levels, inspecting seals for wear, and ensuring proper functioning of the control and release valves, is essential to keep the hydraulic system in optimal condition and ensure safe operation.

product-750-376

Contact now

Quick delivery

Various logistics modes are available

Customization

All products support customization

Secure payment

100% secure payment

24/7 Support

Dedicated support

Product Parameters

Model	unit	Minimum Height(mm)	Maximum Height(mm)
Rated Load	kg	2000	2000
Height when lowered	mm	85	85
Large Wheel Size	mm	Φ180*50	Φ180*50
Double Wheel Size	mm	Φ80*70	Φ80*70
Overall Height	mm	1215	1215
Overall Length	mm	1560	1630
Fork Length	mm	1150	1220
Fork Outer Width	mm	550	685
Turning Radius	mm	1266	1336
Net Weight	kg	75	80

Advantages of Manual Hydraulic Lift Table Trolley

Strong Load Capacity

Durable Wheels

304 Stainless Steel

Improve efficiency

JIN YANG HU stainless steel manual pallet truck helps to enhance productivity and streamline operations in warehouses or industrial settings. With its ability to effortlessly lift and transport heavy loads on pallets, it enables workers to move goods efficiently, saving time and effort.

Strong durability

JIN YANG HU stainless steel construction of the manual pallet truck ensures exceptional durability, enabling it to withstand demanding work environments. It is resistant to rust, corrosion, and damage, making it suitable for use in harsh conditions, including wet or corrosive environments.

Easy to use

JIN YANG HU hand pallet truck is designed for ease of use, allowing operators to maneuver and operate it with minimal effort. It features a user-friendly pump handle that allows for easy lifting and lowering of the forks, along with smooth movement and precise control.
