Steel Pipe Lifting Tongs is a simple lifting tool used to lift some specially shaped items. According to the exact demands, it can use to lift steel pipe, cement pipe, round steel items, steel plate, and many other items. On another side, It always connects some manual or electric lifting slings to supply the power.
Feature and Description
1: For horizontal lifting and transporting of steel and concrete pipes
2: Designed to pick up tubes, pipes, and rolls or similar round stock material items
3: Extremely easy and simple to use&make for the safe lifting
4: Available with automatic open/close device
H shape lifting clamp
Apply to the H shape steel. Connect hoist when fixed on the H shape steel
Wooden board lifting clamp
Apply on the mobile truck, container, pallets, or some wooden cartons. The bite bit is made of alloy steel, High-temperature resistance, and anti-dropping
YH MODEL steel rail lifting clamp
Apply on the steel rail lifting and moving with a safety tightening device

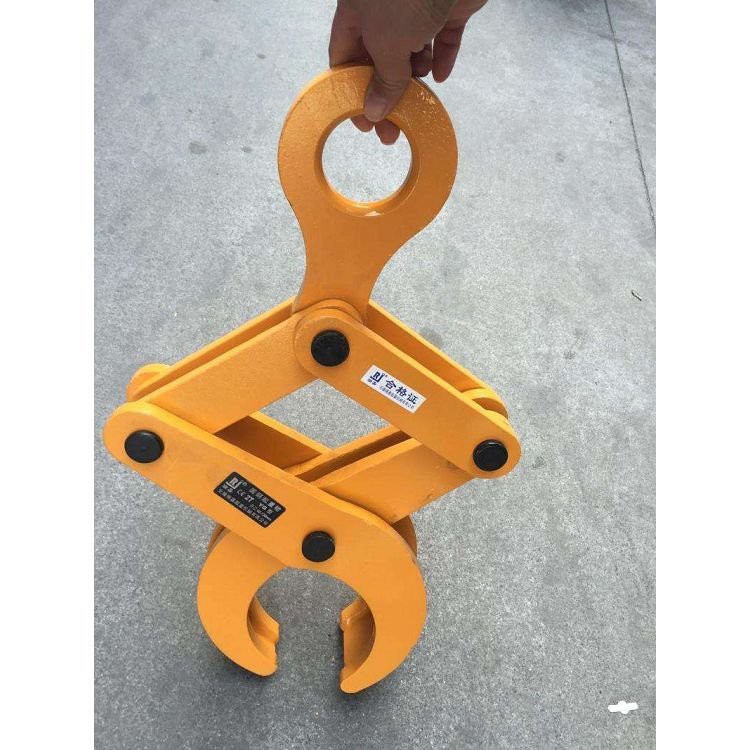

YG model steel pipe lifting clamp
Apply on the steel pipe, round steel, cement pipe
Parameters and specification
Model | Capacity/ton | Jaw opening/mm | Weight/kg | |
H shape lifting clamp | YS/YC1 | 1 | 75-220 | 4 |
YS/YC2 | 2 | 75-220 | 5 | |
YS/YC3 | 3 | 80-320 | 9 | |
YS/YC5 | 5 | 80-320 | 11 | |
YS/YC10 | 10 | 90-320 | 16 | |
Wooden board lifting clamp | MT1 | 1 | 30-130 | 5 |
MT2 | 2 | 30-150 | 10 | |
MT3 | 3 | 30-230 | 13 | |
MT4 | 5 | 30-260 | 26 | |
Round pipe lifting clamp | YG1 | 1 | 50-100 | 4.1 |
YG2 | 2 | 80-130 | 16 | |
YG3 | 3 | 120-220 | 32 | |
Steel pipe lifting clamp | YG5 | 5 | 200-320 | 104 |
Steel rail lifting clamp | YT1 | 1 | 50-100 | 6.5 |
YT2 | 2 | 80-130 | 13 | |
Showcase
Packing and delivery
1pc packed with one color box or wooden carton, then fill into the container
