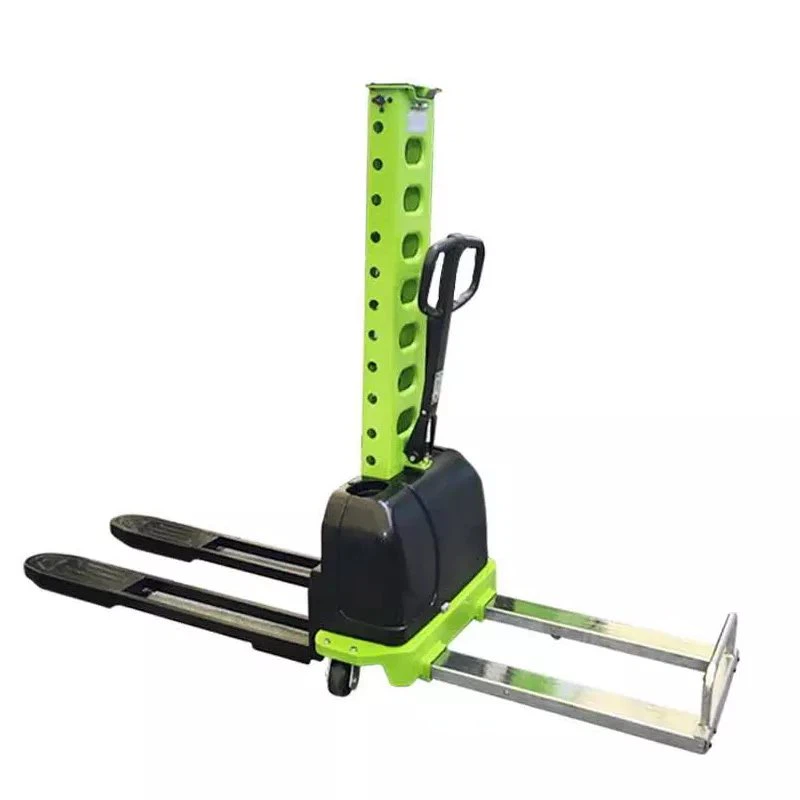

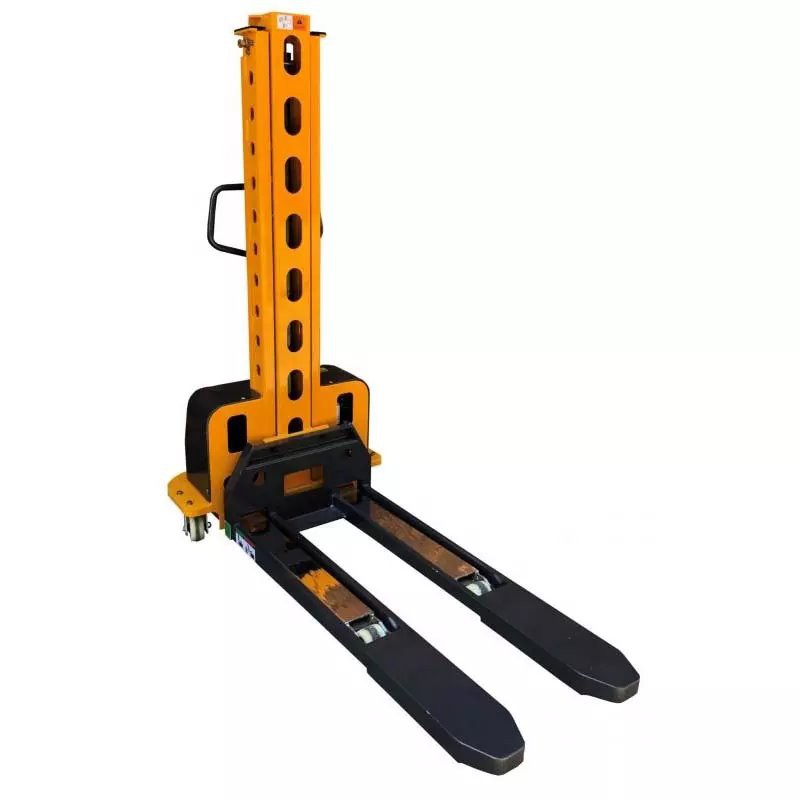

Electric Self Loading Pallet Lifter Stacker 500kg
We'll make wonderful efforts to produce new and top-quality merchandise, meet up with your special necessities and supply you with pre-sale, on-sale and after-sale products and services for Manual oil drum stacker, Counterbalance pallet truck, L-shaped Lifting clamp. If you are for any reason unsure which product to select, do not hesitate to contact us and we will be delighted to advise and assist you. Warmly welcome the majority of manufacturers to establish long-term partnership with us, we will sincerely for you to provide the best quality products and warm and thoughtful service. 'Serving customers wholeheartedly' is our tenet, 'customer satisfaction' is our greatest wish, and 'we will do better' is the slogan that encourages us to work hard. Looking forward to the future, we will work harder and continue to innovate to provide customers with high-quality products and perfect services! Our company has always pursued the tenet of 'Innovation centered on science and technology, and after-sales service centered on users', and strives to provide customers with cost-effective products to improve their competitiveness in the market.
Product Feature
Self Loading Lift Stacker is equipped with advanced oil circuit control system, our Self Lift Stacker ensures high speed operation and there is no special need of maintaining. The main components are stretched and refurbished to ensure extra strength. There are two kinds of model options, thus providing more choices to meet need.
This Self Lift Stacker is composed of battery, motor, hydraulic pump, oil cylinder, piston rod, fork, chain, controller and so on. Due to the high and reliable performance, it realizes the function to lift heavy objects for required height. Compared with ordinary product on the market, it can greatly improve the efficiency of storage.
Product Description
The length of the vehicle is variable, and the turning radius is small, which is more conducive to work for limited places. The high-efficiency signal processing controller not only reduces the response time of each series of actions, but also improves the accuracy of the actions. The walking and hoisting motors of all-cross models adopt all-AC technology, which is more efficient and reliable. The all-pass model is equipped with an electronic steering controller, which greatly improves the response speed of the steering action and makes the vehicle operation faster and more dexterous.
|
Basic parameters |
Model |
|
SDYG-Z 0511 |
SOYG-Z 0513 |
|
Capacity |
Q(Kg) |
500 |
500 |
|
|
Load center |
C(mm) |
400 |
400 |
|
|
Type of lifting |
|
Electric |
Electric |
|
|
Operating type |
|
Walkie |
Walkie |
|
|
Wheel |
Material |
|
Nylon/PU |
Nylon/PU |
|
Wheel base |
y(mm) |
860 |
860 |
|
|
Front wheel base |
b11(mm) |
380 |
380 |
|
|
Back wheel base |
b10(mm) |
670 |
670 |
|
|
Quantity of Steering/Bearing/Balance Wheel |
|
2002/2/6 |
2/2/6 |
|
|
Bearing wheel size |
mm |
Φ 70 x 60 |
Φ70 x 60 |
|
|
Steering wheel size |
mm |
Φ100x50 |
Φ100x 50 |
|
|
Balance wheel size |
mm |
Φ40x26 |
Φ40x26 |
|
|
Training wheel size |
mm |
Φ30x26 |
Φ30x26 |
|
|
Size |
Min.fork height |
mm |
90 |
90 |
|
Max.fork height |
h3(mm) |
1100 |
1300 |
|
|
Fork outside width |
mm |
535 |
535 |
|
|
Fork inside width |
mm |
225 |
225 |
|
|
Fork length |
l(mm) |
1150 |
1150 |
|
|
Single fork size |
e/s(mm) |
155/60 |
155/60 |
|
|
Overall length |
L1(mm) |
1600 |
1600 |
|
|
Overall width |
b1(mm) |
790 |
790 |
|
|
Overall height |
h1(mm) |
1400 |
1600 |
|
|
Whole height(after tape file shelf) |
h4(mm) |
2500 |
2900 |
|
|
Length of vertical surface to fork |
I2(mm) |
1150 |
1150 |
|
|
Min.turning radius |
Wa(mm) |
1100 |
1120 |
|
|
Performance |
Lifting speed(laden/unladen) |
mm/s |
80/110 |
80/110 |
|
Lowering speed(laden/unladen) |
mm/s |
80/80 |
80/80 |
|
|
Electric |
Lift motor |
Kw |
12V0.8 |
12V0.8 |
|
Battery capacity |
V/Ah |
12/33 |
12/33 |
|
|
Weight |
Battery weight |
Kg |
10 |
10 |
|
Net weight |
Kg |
197 |
219 |
These principles today more than ever form the basis of our success as an internationally active mid-size company for Electric Self Loading Pallet Lifter Stacker 500kg. Customers can always rely on our professional product provided so as to better enhance the image of your company. We adhere to the policy of friendly cooperation and mutual benefit, and we cooperate well with various accessories manufacturers.
