Vt Model Chain Hoist 2 Ton Chain Hoist
Unit: t
With a sound business credit, excellent after-sales service and modern manufacturing facilities, we have earned an excellent reputation among our customers across the world for Mnaual claw jack, Hand operation pallet stacker, Three Wheel lifting Pulley. We should not only promote our own development, as well as help to promote the national development of environmental protect. We will continue to advance on the road of market development with first-class quality, service, and reputation, and will never stop to provide customers with perfect value. We adhere to the tenet of 'Services of Standardization, to Meet Customers' Demands'. Our foreign trade principle is based on common development with customers.

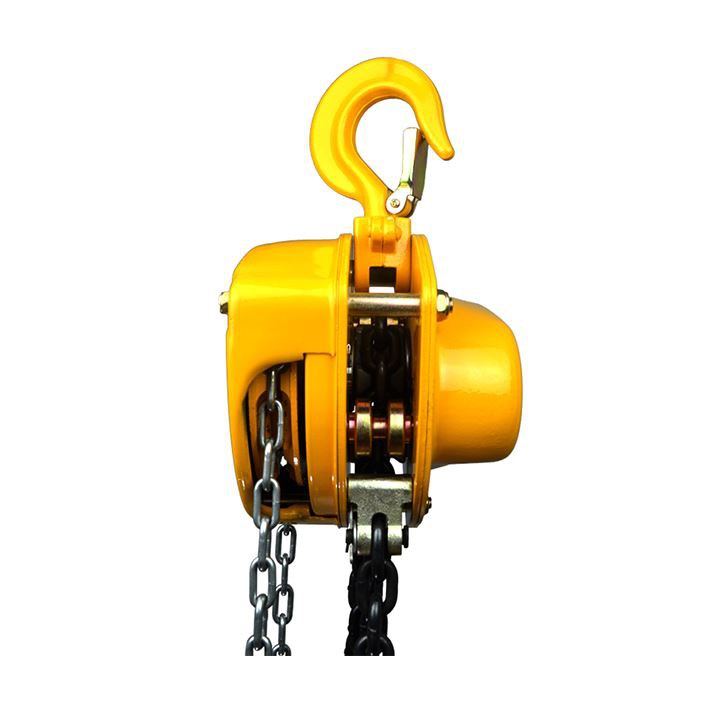

VT Manual Chain Hoists suitable for short-distance hoisting of small equipment and goods. The lifting weight generally does not exceed 10T, the maximum can reach 20T, and the lifting height generally does not exceed 6m. The outer shell of the chain hoist is made of high-quality alloy steel, which is strong and wear-resistant and has high safety performance. When the chain hoist lifts a heavy object, pull the manual chain and hand chain wheel clockwise to rotate, and pull the hand zipper bar counterclockwise when descending. The brake seat is separated from the brake pad. The ratchet wheel is stationary under the action of the pawl. The five-tooth long shaft Drive the hoisting sprocket to run in the opposite direction, so as to lower the weight steadily
VT Manual Chain Hoist parameters as following:
Model | Unit | VT1/2 | VT1 | VT11/2 | VT2 | VT3 | VT5 | VT10 |
Capacity | t | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 |
Standard lifting height | m | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5 |
Test load | t | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 |
H min Headroom(hook to hook)H min | mm | 285 | 315 | 340 | 380 | 475 | 600 | 700 |
Chain pull to lift full load | N | 25 | 33 | 34 | 34 | 35 | 39 | 41 |
No.of load chain fall lines | 1 | 1 | 1 | 1 | 2 | 2 | 4 | |
Diameter of load chain | mm | 6.3 | 6.3 | 7.1 | 8 | 7.1 | 9.1 | 9.1 |
Net weight | kg | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77 |
Gross weight | kg | 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85 |
Packing measurement | cm | 30*17*32 | 30*17*32 | 30*17*32 | 28*19*23 | 28*17*32 | 40*20*34 | 62*50*26 |
