Crank Gear Boat Trailer Heavy Duty Hand Winch With Brake For Hot Sales

The manual winch is a kind of lifting tool suitable for many places. It can carry out vehicle self rescue in the harsh environment. Under other conditions, It is an indispensable safety device for military police, petroleum, hydrology, environmental protection, forestry, traffic, public security, border defense, fire fighting and other field operations.

Send Inquiry

Product Introduction

Specification		0.5T	1T	2T	3T
Rated load (T)		0.5	1	2	3
Test load (kN)		6.125	12.25	24.5	36.75
Applicable wire rope Dia.(mm)*Length(m)		6.3x40	8x40	9x40	12.5x40
Speed ratio		4:33:01	12:19:01	23:08:01	29:16:01
Maximum length of connecting rod (mm)		350	350	350	350
Minimum hand force (N)		120	120	130	180

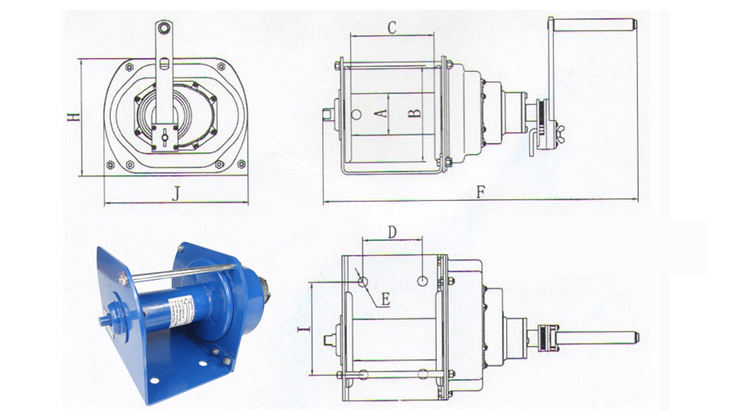

Main dimensions (mm)	A	60	76	90	100
	B	140	175	190	230
	C	150	154	195	205
	D	100	110	155	155
	E	15	18	18	18
	F	403	443	490	549
	H	182	214	230	296
	I	130	170	170	170
	J	245	266	300	365
Weight (kg)		14.4	19.7	25.1	44.3
Lowering speed,laden/unladen			0.36/0.42	0.36/0.42
