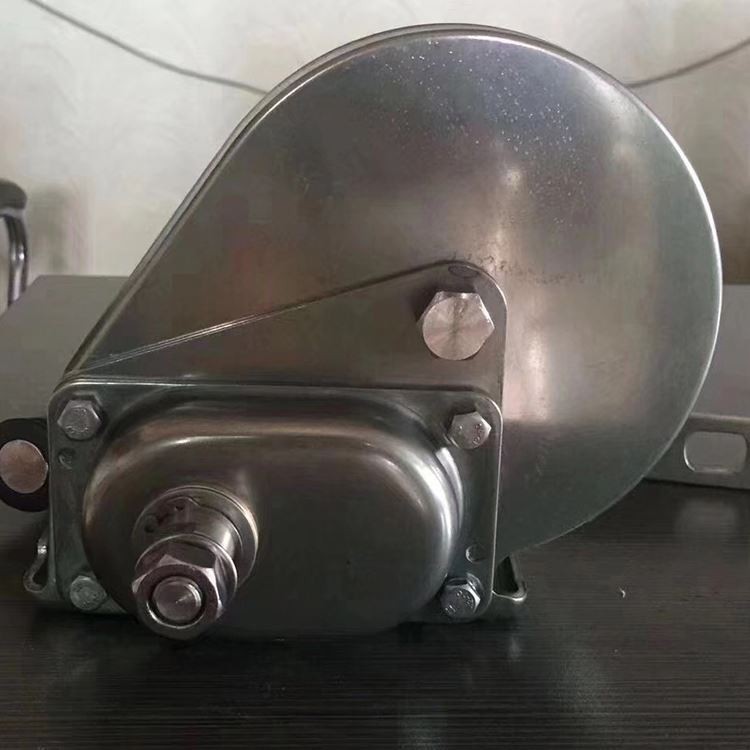

Stainless Steel Hand Manual Winch

Stainless Steel Hand Winch has smooth and glossy surface, and it has good resistance to corrosion and rust, thus extending its overall life span.

Send Inquiry

Product Introduction

Product Introduction

Stainless Steel Hand Winch has its components all made of high quality stainless steel, including the frame, cover, reel, bottom bracket, gear set, gear housing, screws, nuts, circlips, washers, handles, and wire rope fixing screws. It comes with a two-direction braking system that automatically turns on the brakes when not shaken to protect cargo and personnel. The overall stainless steel plate is thickened, and it also achieves high precision, high tension, sturdy and durable.

Features

Stainless Steel Hand Winch has smooth and glossy surface, and it has good resistance to corrosion and rust, thus extending its overall life span. Its stainless steel gears undergo a special vacuum treatment for high occlusion and stronger power. Also, it has a non-slip rubber handle, which is removable, simple and convenient. The hemp-core steel wire rope used in conjunction with the winch is load-bearing, wear-resistant, and not easy to break.

Applications

Stainless Steel Hand Winch has advantages of efficient structure, large load-bearing capacities, easy installation, high strength, and versatile applications. It is suitable for aquatic product processing plants, seafood markets, basements, cold cellars, and highly corrosive chemical plants, which are prone to water or moisture.

Specification		1200lb	1800lb	2600lb
Rated load（t）		1200	1800	2600
Test load（kn）		8	12	17.5
Speed ratio		4.2:1	5:01	10:01
Hand force（n）		180	190	190
Main dimensions （mm）	A	∮48	∮60	∮75
	B	∮134	∮180	∮180
	C	51	60	63
	D	157	190	209
	E	∮27	∮27	∮27
	F	273	288	307
	G	110	110	110
	H	156	203	216
	J	184	246	294
	R	208	319	319
Net weight（Without wire rope）		3.7	8.1	10.3
