AML Manual Single Mast Material Lift
A manual single mast material lift is a piece of equipment designed for lifting and moving heavy loads vertically. Unlike a powered lift, this type of lift is operated manually using a lever or crank. The lift is made up of a single mast and a platform at the top, which can be raised and lowered using the manual controls. This type of lift is commonly used in warehouses, factories, and construction sites to move materials and equipment safely and efficiently. The operator must be trained in the proper use of the lift and follow safety guidelines to prevent accidents.
Send Inquiry
Product Introduction
Description of aerial work platform
The manual single mast material lift is a piece of equipment designed to lift and transport heavy objects in various industrial and commercial settings. It is equipped with a single vertical mast, a hydraulic pump, and a hydraulic cylinder that are operated manually.
The lift can be easily moved from one location to another and provides a safe and efficient solution for lifting and moving heavy materials to higher elevations. The lift is capable of lifting weights up to a certain limit and has a platform or cage attached to the mast for carrying the load.
The design of this lift is simple, compact, and user-friendly, making it an ideal choice for applications that require manual lifting and moving of goods. Overall, a manual single mast material lift is a reliable, durable and cost-effective solution for various material handling tasks.
Details of the platform
User-friendly operation. Easier to control and easy to use.
Heavy-duty aluminum and steel construction. More durable, the wire rope slides smoothly without jamming.

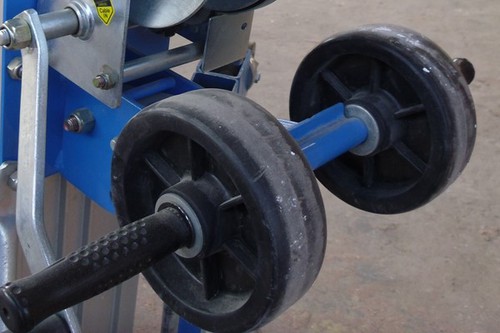

With wheels, Easy loading in pickup trucks. Save effort during loading and unloading.
Moves easily on swivel casters. Forward and backward, turning can be easily adjusted.
Parameters
|
MODEL
|
AML3
|
AML4.5
|
AML6
|
AML7.5
|
||
|
Dimension
|
||||||
|
Working Height
|
Fork down
|
2.97m
|
4.46m
|
5.94m
|
7.42m
|
|
|
Fork up
|
3.49m
|
4.98m
|
6.46m
|
7.94m
|
||
|
Height-stowed
|
1.99m
|
1.99m
|
1.99m
|
1.99m
|
||
|
Length-stowed
|
0.74m
|
0.74m
|
0.74m
|
0.79m
|
||
|
Length-operating
|
1.51m
|
1.88m
|
2.08m
|
2.08m
|
||
|
Width-stowed
|
0.8m
|
0.8m
|
0.8m
|
0.8m
|
||
|
with stabilizer lowered
|
1.85m
|
1.85m
|
1.85m
|
1.85m
|
||
|
Ground Clearance
|
0.05m
|
0.05m
|
0.05m
|
0.05m
|
||
|
Productivity
|
||||||
|
Load Capacity
|
46cm load center
|
454kg
|
363kg
|
363kg
|
295kg
|
|
|
61cm load center
|
454kg
|
363kg
|
272kg
|
204kg
|
||
|
107cm load center
|
181kg
|
227kg
|
159kg
|
113kg
|
||
|
Weight
|
||||||
|
Overall Weight
|
118kg
|
151kg
|
184kg
|
204kg
|
||
Product Display
Packing&Deliver
FAQ
Q: What is the minimum order quantity? (MOQ)
A: Normally 50pcs/item. Trial orders and further requests can be negotiated.
Q: Can I order one sample?
A: Sure. Sample is provided by reasonable charges,the sample charge will be refund after the order is placed.
Q:What is the delivery time?
A: Maximum 50 days after receiving the relevant payment, samples is 5-10 working days around.
Q: What is the maximum weight capacity of a Manual Single Mast Material Lift?
A: A Manual Single Mast Material Lift can typically handle loads up to 500 kg or more, depending on the model.
Q: Is it easy to operate a Manual Single Mast Material Lift?
A: Yes, it is simple to operate a Manual Single Mast Material Lift. One can easily use the hydraulic pump lever to raise or lower the platform to the desired height.
Q: What are the safety features of a Manual Single Mast Material Lift?
A: A Manual Single Mast Material Lift usually comes with safety features like safety locks, non-slip platforms, and emergency lowering functions.
Q: What are the common applications of a Manual Single Mast Material Lift?
A: A Manual Single Mast Material Lift is commonly used for lifting and transferring pallets, equipment, and materials in warehouses, workshops, construction sites, and manufacturing facilities.
