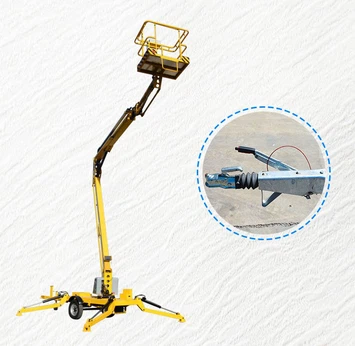

QYTGZ Electric Small Trailer Mounted Boom Lift
Description of aerial work platform
A trailer-mounted boom lift is a piece of equipment used for lifting workers and materials to heights that are otherwise unreachable. This type of boom lift is mounted on a trailer that can be easily transported from one place to another.
Details of aerial work platform
TRAILER HOOK
LOWER CONTROL
GRADIENTER
Parameters of aerial work platform
|
Model |
TGZ08 |
TGZ10 |
TGZ12 |
TGZ14 |
TGZ16 |
TGZ18 |
TGZ20 |
||
|
Performance |
|||||||||
|
Maximum working height |
10m |
12m |
14m |
16m |
18m |
20m |
22m |
||
|
Maximum platform height |
8m |
10m |
12m |
14m |
16m |
18m |
20m |
||
|
Maximum load |
200kg |
200kg |
200kg |
200kg |
200kg |
200kg |
200kg |
||
|
Maximum working distance |
4.5m |
5.7m |
6.4m |
8.5m |
9.5m |
10.9m |
12.5m |
||
|
Platform size (L X W x H) |
1.2×0.8×1.1m |
1.2×0.8×1.1m |
1.2×0.8×1.1m |
1.2×0.8×1.1m |
1.2×0.8×1.1m |
1.2×0.8×1.1m |
1.2×0.8×1.1m |
||
|
Transportation length (length × width X height) |
5.2×1.585×1.9m |
5.4×1.665×1.9m |
6.4×1.665×1.9m |
6.0×1.73×2.1m |
7.0×1.73×2.2m |
7.1×1.85×2.26m |
7.7×1.85×2.26m |
||
|
Leg span (longitudinal X transverse) |
3.4×3.2m |
3.7×3.45m |
3.7×3.45m |
3.97×4.18m |
4.2×4.3m |
4.94×4.76m |
5.14×4.76m |
||
|
Turntable rotation Angle (continuous) |
360° |
360° |
360° |
360° |
360° |
360° |
360° |
||
|
Platform rotation Angle |
160° |
160° |
160° |
160° |
160° |
160° |
160° |
||
|
tyre |
185/75R14C |
185/75R14C |
185/75R14C |
215/75R16C |
215/75R16C |
245/75R16C |
245/75R16C |
||
|
control |
Hydraulic control |
Hydraulic control |
Hydraulic control |
Hydraulic control |
Hydraulic control |
Electric proportional control |
Electric proportional control |
||
|
Gross weight |
1538kg |
1600kg |
1800kg |
2350kg |
2900kg |
4300kg |
4450kg |
||
|
Power |
|||||||||
|
Diesel engine power |
10HP |
12HP |
15HP |
||||||
|
Direct current pumping station |
24V/4.5kw(matching) |
24V/4.5kw(matching) |
24V/4.5kw(matching) |
||||||
|
battery |
4×6V180Ah(matching) |
4×6V180Ah(matching) |
4×6V210Ah(matching) |
||||||
|
communication |
380v/1.5kw or 220v/2.2kw |
380v/1.5kw or 220v/2.2kw |
380v/2.2kw或220v/2.2kw |
||||||
Product Display
Packing&Delivery
FAQ
Q: What is the minimum order quantity? (MOQ)
A: Normally 50pcs/item. Trial orders and further requests can be negotiated.
Q: Can I order one sample?
A: Sure. Sample is provided by reasonable charges,the sample charge will be refund after the order is placed.
Q:What is the delivery time?
A: Maximum 50 days after receiving the relevant payment, samples is 5-10 working days around.
Q: What safety precautions should be taken when using a High Aerial Work Platform?
A: Safety precautions when using a High Aerial Work Platform include wearing a safety harness, following weight limits, keeping the platform area clear of obstacles, and ensuring the platform is stable and level.
Q: What type of training is required to operate a High Aerial Work Platform?
A: Proper training and certification is required to operate a High Aerial Work Platform, including understanding safety procedures, equipment operation, and emergency protocols.
Q: What maintenance is required for High Aerial Work Platforms?
A: Regular maintenance is necessary to ensure the safe and reliable operation of a High Aerial Work Platform, including inspections, repairs, and replacement of parts as needed.
Q: How can one choose the right High Aerial Work Platform for a specific job?
A: Choosing the right High Aerial Work Platform involves considering the specific job requirements, including the required height, weight capacity, and working environment. Consulting with a professional can also help to determine the best fit for the job.
