GTWY2 Double Masts Vertical Lift Platform
Products Description

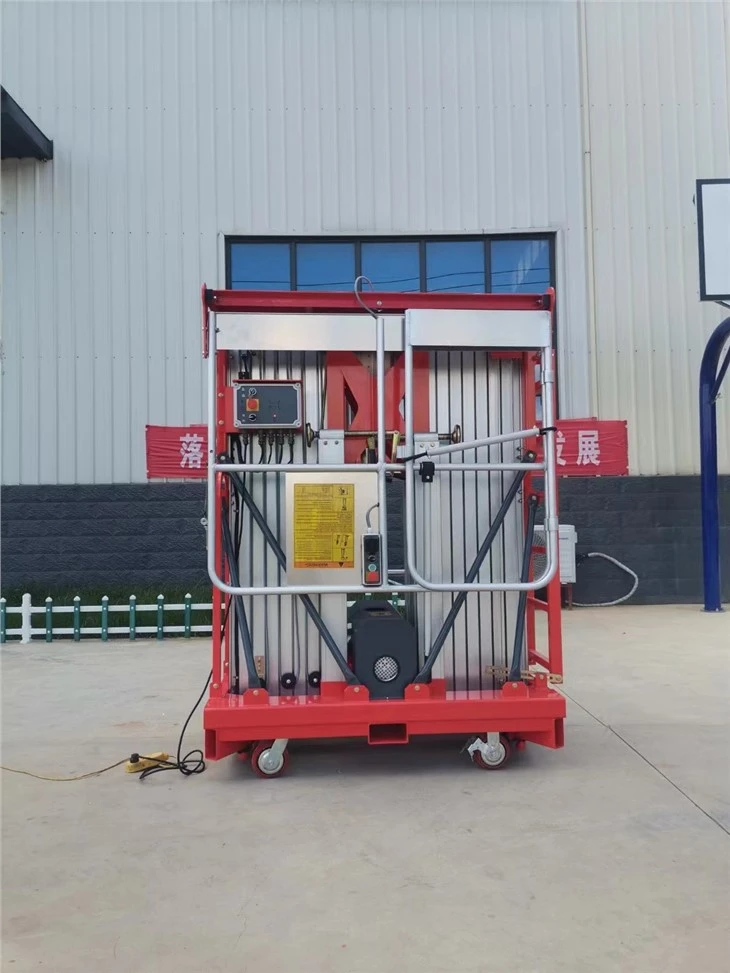

Double Masts Vertical Lift Platform
A Double Masts Vertical Lift Platform is a type of elevated work platform used to lift personnel and materials to different heights for maintenance, repair, and construction purposes. It consists of a stable base, two vertical masts, and a platform that can move up and down between the masts. The lift is powered by an electric motor or hydraulic system, and the platform can be raised or lowered to various heights, making it a versatile solution for accessing hard-to-reach areas. This type of lift is commonly used in factories, warehouses, and other industrial settings to improve worker safety and productivity.
Details of the Platform
Outrigger interlock
Folding-down guardrails
Deadman switch and AC power
Aviation plug,stable&convenient
Durable cable
Standard forklift pocket
Outrigger rubber pad
Inserting Aluminium Outrigger
Two supporting rod(>10m)
Emergency Lowering Button
Parameters of the Platform
| Model | JIN YANG HU GTWY2-6 |
JIN YANG HU GTWY2-8 |
JIN YANG HU GTWY2-10 |
JIN YANG HU GTWY2-12 |
JIN YANG HU GTWY2-14 |
JIN YANG HU GTWY2-16 |
| Platform | ||||||
|---|---|---|---|---|---|---|
| Max. Working Height | 8m | 10m | 12.4m | 14m | 16m | 18m |
| Max. Platform Height | 6m | 8m | 10.4m | 12m | 14m | 16m |
| Loading Capacity | 250kg | 250kg | 250kg | 200kg | 200kg | 150kg |
| Occupants | 2 | 2 | 2 | 2 | 2 | 1 |
| Platform Dimension | 1.45m x 0.7m | 1.45m x 0.7m | 1.45m x 0.7m | 1.45m x 0.7m | 1.8m x 0.7m | 1.8m x 0.7m |
| Overall Dimension | ||||||
| Overall Height | 1.99m | 1.99m | 1.99m | 1.99m | 2.68m | 2.68m |
| Overall Width | 0.81m | 0.81m | 0.81m | 0.81m | 0.81m | 0.81m |
| Overall Length | 1.45m | 1.45m | 1.45m | 1.45m | 1.88m | 1.88m |
| Outrigger coverage | 2.45m x 1.75m | 2.45m x 1.75m | 2.45m x 2.1m | 2.45m x 2.1m | 2.7m x2.8m | 2.7m x2.8m |
| Weight | ||||||
| AC | 610kg | 645kg | 715kg | 750kg | 892kg | 996kg |
| DC | 660kg | 695kg | 765kg | 800kg | 942kg | 1046kg |
| Power | ||||||
| AC | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V | 380V/220V/110V |
| AC Motor | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
| DC | 2x12V | 2x12V | 2x12V | 2x12V | 2x12V | 2x12V |
| DC motor | 2.2KW | 2.2KW | 2.2KW | 2.2KW | 2.2KW | 2.2KW |
| Charger | 12V/15A | 12V/15A | 12V/15A | 12V/15A | 12V/15A | 12V/15A |
FAQ
Q: What is the minimum order quantity? (MOQ)
A: Normally 50pcs/item. Trial orders and further requests can be negotiated.
Q: Can I order one sample?
A: Sure. Sample is provided by reasonable charges,the sample charge will be refund after the order is placed.
Q:What is the delivery time?
A: Maximum 50 days after receiving the relevant payment, samples is 5-10 working days around.
Q: What safety precautions should be taken when using a High Aerial Work Platform?
A: Safety precautions when using a High Aerial Work Platform include wearing a safety harness, following weight limits, keeping the platform area clear of obstacles, and ensuring the platform is stable and level.
Q: What type of training is required to operate a High Aerial Work Platform?
A: Proper training and certification is required to operate a High Aerial Work Platform, including understanding safety procedures, equipment operation, and emergency protocols.
Q: What maintenance is required for High Aerial Work Platforms?
A: Regular maintenance is necessary to ensure the safe and reliable operation of a High Aerial Work Platform, including inspections, repairs, and replacement of parts as needed.
Q: How can one choose the right High Aerial Work Platform for a specific job?
A: Choosing the right High Aerial Work Platform involves considering the specific job requirements, including the required height, weight capacity, and working environment. Consulting with a professional can also help to determine the best fit for the job.
