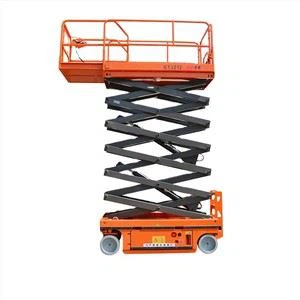

Electric Self Propelled Aerial Work Platform
Description of aerial work platform
The Electric Self Propelled Aerial Work Platform is a type of equipment used in construction, maintenance, and repair work to provide workers with safe access to elevated areas. It is also commonly referred to as an Elevated Work Platform. The Aerial Work Platform typically consists of a sturdy, hydraulic boom or scissor lift that extends vertically or horizontally to provide access to hard-to-reach areas such as tall buildings, bridges, trees or utility poles. The boom or scissor lift is usually mounted on a truck or trailer, making it portable and easy to move from one job site to another.
Details of aerial work platform
Forklift pocket
Horn
Upper control system with proportional control
Fault diagnosis
Work warning light
Extension platform can be added
The same location to expand the scope of work.
Emergency descent
Seat belt attachment
Parameters of aerial work platform
|
Model No. |
AMWP3.6-6100 |
AMWP4.8-6100 |
|
Max.Platform Height |
3.6m |
4.8m |
|
Max Working Height |
5.6m |
6.8m |
|
Load capacity |
227Kg |
227kg |
|
Ext. Platform Capacity |
114kg |
114kg |
|
Ext. Platform Length |
0.51m |
0.51m |
|
Overall size |
1.36*0.76*1.7 m |
1.36*0.76*1.98 m |
|
Platform Size |
1.30*0.70 m |
1.30*0.70 m |
|
UP/Down speed |
31/32 SEC |
41.5/42 SEC |
|
Max Drive Speed(Platform Stowed) |
4 Km/h |
|
|
Max Drive Speed(Platform Raised) |
1.1 Km/h |
|
|
Gradeability |
25% |
|
|
Driving Wheel Size |
Φ305X100 mm |
|
|
Battery |
2X12V/100AH |
|
|
Lifting motor |
24VDC/1.3KW |
|
|
Drive motor |
2X24VDC/0.5kw |
|
|
Charger |
24V/15A |
|
|
Net weight |
810kg |
980kg |
Packing&Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: What is the minimum order quantity? (MOQ)
A: Normally 50pcs/item. Trial orders and further requests can be negotiated.
Q: Can I order one sample?
A: Sure. Sample is provided by reasonable charges,the sample charge will be refund after the order is placed.
Q:What is the delivery time?
A: Maximum 50 days after receiving the relevant payment, samples is 5-10 working days around.
Q: What safety precautions should be taken when using a High Aerial Work Platform?
A: Safety precautions when using a High Aerial Work Platform include wearing a safety harness, following weight limits, keeping the platform area clear of obstacles, and ensuring the platform is stable and level.
Q: What type of training is required to operate an electric Self Propelled Aerial Work Platform?
A: Proper training and certification is required to operate a High Aerial Work Platform, including understanding safety procedures, equipment operation, and emergency protocols.
Q: What maintenance is required for High Aerial Work Platforms?
A: Regular maintenance is necessary to ensure the safe and reliable operation of a High Aerial Work Platform, including inspections, repairs, and replacement of parts as needed.
Q: How can one choose the right Aerial Work Platform for a specific job?
A: Choosing the right High Aerial Work Platform involves considering the specific job requirements, including the required height, weight capacity, and working environment. Consulting with a professional can also help to determine the best fit for the job.
