1500kg Semi Electric Straddle Stacker Wide Straddle Leg Electric Pallet Stacker Power Stacker for USA Market
We are guided by the company spirit of 'harmony, tolerance, unity, dedication, science, and innovation'. We will continue to provide high-quality Scale hand pallet truck, 12000lbs electric off-road winch, Flat and soft webbing sling and excellent services to our customers at home and abroad, and develop simultaneously with our respected customers. We will be determined to innovate, with professional manufacturing and better service. We always focus on the practicality and safety of the product. We always develop and design kinds of novel items to meet the market demand and help the guests continuously by updating our goods. We have assembled an elite team of R&D, production and sales professionals with rich experience and tenacious style in the industry.
Products Description
A semi-electric pallet stacker is a type of material handling equipment used for lifting and transporting pallets of goods in warehouses, factories, and other industrial settings. Unlike fully electric pallet stackers, which rely entirely on electric power for all their functions, semi-electric models have both manual and electric components.
Details of the Stacker

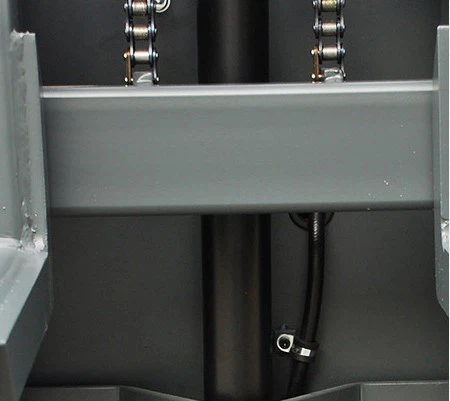

THICKENED LIFTING CHAIN
CHAIN DRIVE STEERING WHEEL
MECHANICAL BRAKE
AIR SPRING DESIGN
HIGH PRESSURE EXP OSION-PROOF OIL PIPE
Paraneters of the Stacker
Driving style | Walking | Walking | Walking | |
Rated carrying capacity | Kg | 1000 | 1000 | 1000 |
Load center distance | mm | 600 | 600 | 600 |
Wheelbase | mm | 1160 | 1160 | 1160 |
Weight (including battery) | Kg | 410 | 475 | 495 |
Wheel type | Nylon/Polyurethane | Nylon/Polyurethane | Nylon/Polyurethane | |
Front wheel size | mm | 180x50 | 180x50 | 180x50 |
Rear wheel size | mm | 74x70 | 74x70 | 74x70 |
Number of wheels (front/rear) | 2--4 | 2--4 | 2--4 | |
Front wheel track | mm | 658 | 658 | 658 |
Rear wheel track | mm | 390/490 | 390/490 | 390/490 |
Height when the mast is retracted | mm) | 1980 | 1830 | 2080 |
Lifting height | mm | 1600 | 2500 | 3000 |
Maximum height of mast during operation | mm | 1980 | 3070 | 3570 |
Handle height min/ max | mm | 790/1156 | 790/1156 | 790/1156 |
Height when the fork is lowered | mm | 85 | 85 | 85 |
Body length | mm | 1720/1570 | 1720/1580 | 1720/1580 |
Distance from fork surface to front | mm | 610/670 | 610/670 | 610/670 |
Body width | mm | 762 | 762 | 762 |
Fork size | mm | 60/180/1100 | 60/180/1100 | 60/180/1100 |
60/150/900 | 60/150/900 | 60/150/900 | ||
Outer width of fork | mm | 570 | 570 | 570 |
330~640 | 330~640 | 330~640 | ||
Right-angle stacking channel width, tray | mm | 2145 | 2145 | 2145 |
Right-angle stacking channel width, tray | mm | 2175 | 2175 | 2175 |
Turning radius | mm | 1280 | 1280 | 1280 |
Lifting speed, fully loaded/ unloaded | mm/s | 90/140 | 90/140 | 90/140 |
Lowering speed, full load/ no load | mm/s | 120/100 | 120/100 | 120/100 |
Parking brake | manual | manual | manual | |
Increase motor power | kw | 1.5 | 1.5 | 1.5 |
Battery voltage/ rated capacityK5 | V/Ah | 12/150 | 12/150 | 12/150 |
Battery weight | Kg | 45 | 45 | 45 |
Packaging&Shipping
FAQ
Q: What is a Semi-electric Pallet Stacker forklift? A: A Semi-electric Pallet Stacker forklift is a material handling equipment that is used to lift and move pallets and other heavy loads. It is powered by both electric and manual mechanisms, with an electric motor used to lift the load and a manual pump used to move the machine.
Q: What are the benefits of using a Semi-electric Pallet Stacker forklift? A: Some benefits of using a Semi-electric Pallet Stacker forklift include increased efficiency, improved safety, and reduced manual labor. The electric motor allows for faster and easier lifting of heavy loads, while the manual pump allows for greater control and maneuverability in tight spaces.
Q: What are the weight limits of a Semi-electric Pallet Stacker forklift? A: The weight limit of a Semi-electric Pallet Stacker forklift varies depending on the specific model and manufacturer. Generally, they can handle loads ranging from 1,000 to 3,000 pounds.
With strong research and development capabilities, we strive to develop a variety of new and practical 1500kg Semi Electric Straddle Stacker Wide Straddle Leg Electric Pallet Stacker Power Stacker for USA Market and continue to provide users with better application solutions. They place order with us and export solutions to other countries. Welcome your inquiry, It might be highly appreciated.
